VETUS Waste Water Tank System 88L With 24V Pump And Sensor

The waste water tank system is designed to save on space and
installation time. The tank has a capacity of 88 litres and is made
of odour impermeable polythene. It is suitable for storing black
and grey waste water and is provided with ISO 8099
identification.
The ready to go system comes complete with a VETUS waste water pump
type EMP (24 Volt), an inspection cover, a tank gauge sender (the
24 Volt level gauge must be ordered separately), a plastic suction
pipe with diameter 38 mm angled hose connection for discharge from
ashore, two securing straps and one diameter 19 mm connection for
the breather.
All input and discharge connections are accessible at the top of
the tank. One hole has already been provided to connect the inlet
fitting. Angled connectors for the input of waste water must be
ordered separately.

Specifications:

Weight (kg)	No
Capacity (litres)	88

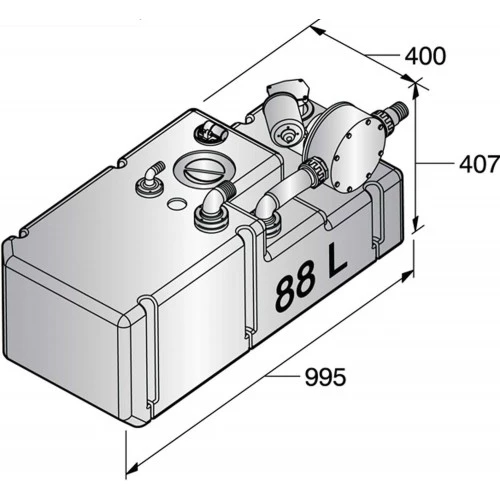

Dimensions (length x width x height) (mm)	407 x 400 x 995
Voltage (V)	24 V
