VETUS Vetus Libero Ventilation Hatch 2020 Radius 32mm

Heavy-duty ventilation hatch

VETUS Vetus Libero Ventilation Hatch frames are
hand polished prior to the anodisation process. Not only does this
have higher quality appearance, but has the advantage that dirt,
salt and grease will not accumulate on the frame and cause
permanent stains. Even under the most arduous conditions, VETUS
windows, portlights and hatches will still look like new!

These hatches are classified CE AII.

VETUS hatch handles have a number of
advantages:

• The hatch can be opened from either inside or outside
• The hatch can be shut completely watertight, or secured with a
  small air gap to allow permanent ventilation
• An internal locking mechanism ensures the hatch cannot be
  opened from outside when the boat is left unattended.This operates
  in both the closed or ventilation positions.
• The low external profile ensures that ropes, e.g. running
  rigging on sailing boats, cannot foul on the handles.
• These handles are available separately and can be used to
  upgrade older VETUS Libero and Planus hatches.

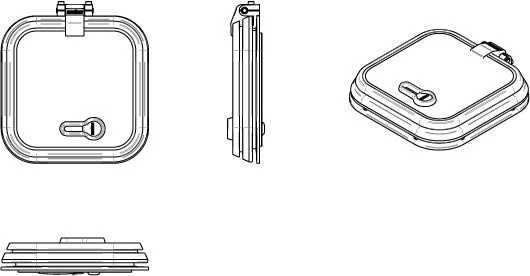

VETUS Vetus Libero Ventilation Hatch Features:

• Model: LIB2032L
• Cut-Out Size: 200 x 200 mm
• Overall Size: 260 x 260 mm
• Corner Radius: 32 mm
• Height: 50 mm
• Finish: Hand Polished Anodised Aluminium
• Lid Type: 12mm “Smoke” Acrylic
• Support type: Friction Hinge
