VETUS V-Can Panel For Electric Propulsion With Key Switch Black

MPE1KB key switch – all-in-one solution; V-CAN power supply, 12 VDC cooling pump power supply and anti-theft. Engaging the V-CAN line and 12 VDC cooling pump by the turn of the key. Specifications

Compact design and high quality materials

Stylish designed aluminium bezel 33/8 x 33/8 (85 x 85 mm)

Quick installation in diameter 215/16 (75 mm) cut-out hole

Can be installed in double frame (XTASF2P 65/8 x 33/8) (167,5 x 85 mm)

Waterproof IP65 when mounted

V-CAN CANBUS protocol certified

Input wires 12 VDC

Reverse polarity protection for V-CAN output

Switched output V-CAN connector 12 VDC, fuse protected 5 A max.

Switched output 12 VDC, fuse protected 30 A max.

LED indication when engaged

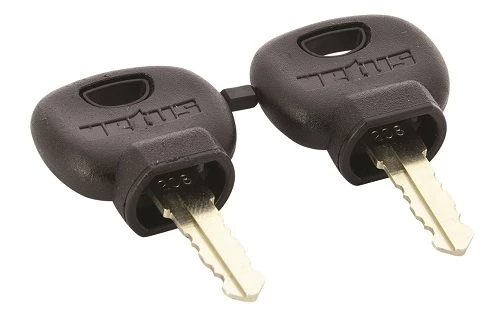

Key switch for e-drives.
Product Data Sheet
