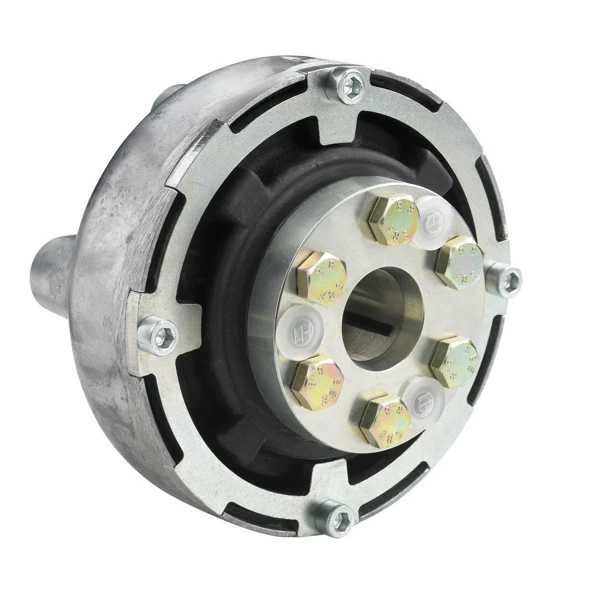

The UNIFLEX coupling permits a misalignment of 2 degrees. It will
centre the shaft to the gearbox, resulting in an ideal flexible
coupling for a propeller shaft.
Specifications:
| Type | Uniflex 13 |
|---|---|
| DIN 6270B = pleasure craft kW (HP)/100 shaft RPM | 2,6 (3,6) |
| Max. admissible power at 1500 RPM | 15 x 2,6 = 39 kW (53 pk) |
| DIN 6270A = commercial craft kW (HP)/100 shaft RPM | 1,8 (2,5) |
| Weight (kg) | 2,4 |

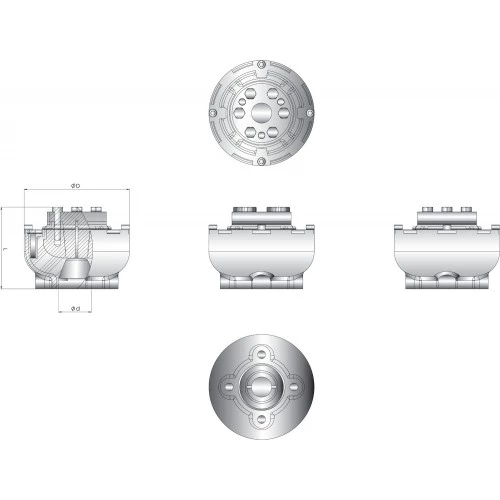

| D (mm) | 130 |
| L (mm) | 98 |
| Shaft diameter d (mm) | 20 |
Product Data Sheet
