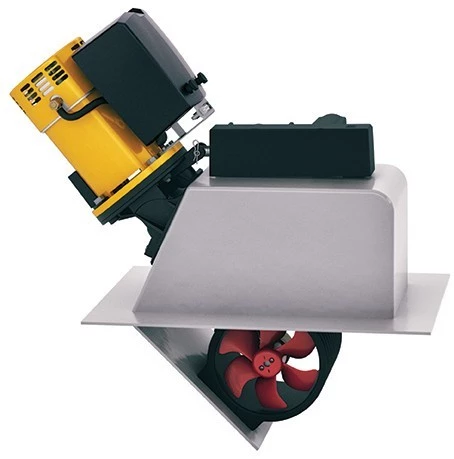

VETUS Swing Thruster Electric 160 Kgf 24 V

Easy docking, no drag, less noise Even for the
more experienced skipper, it can be difficult to manoeuvre the boat
in harsh wind conditions and strong currents. The new line of
retractables VETUS thrusters can be placed in shallow parts of the
hull and will not disturb its smooth lines. This low drag solution
will make your docking experience easier, faster and just plain
more enjoyable. A retractable thruster has the following
advantages

• Optimum forward placement in the bow, while maintaining depth
  by deployment
• Less noise and vibration as it is not directly connected to the
  hull
• Optimum tunnel length with minimal losses
• Virtually no marine growth, as there is no light when thruster
  is in retracted and closed position
• May be placed in the stern in (both sailing and motor) boats
  where it is not possible to install a tunnel thruster
• Less drag as the lid is flush to the hull
• Small dimensions
• Suitable for power vessels up to 20 metres
• Specifications:

Voltage (V)	24 V
Ignition protection	No
Thrust (N / kgf)	1600/160
Power (kW)	7
Product review	No
Motor, reversible D.C.	Yes
Internal tunnel diameter (mm)	250
Weight (kg)	49
Current consumption (A)	540
Continuous operating time (min)	4.5
Max. operating time (minutes)	4.5
Main fuse ‘slow blow’ (A)	355
Batteries 12 V, min./max. Ah	2×165/4×165
Battery cables, length pos./neg. cables (m/mm)	0-29/120
Battery main switch: model BATSW / type BPMAIN	600 (BATSW)
Size A in mm, see drawing	na
Size B in mm, see drawing	na
Size C in mm, see drawing	na
Size D min./max. in mm, see drawing	na
Size E in mm, see drawing	na
Size F, diameter in mm, see drawing	na
Size G min. in mm, see drawing	na
Size H, diameter in mm, see drawing	na

Product Data Sheet
