VETUS SMTO2S Marine Toilet 12V With Rocker Switch

The VETUS toilet SMTO2S12 is among the smallest electric marine
toilets on the market. Due to its compact dimensions and low
weight, it is an ideal replacement for old and possibly obsolete
manually operated toilets. Operated by a simple rocker switch, it
is a lower price alternative to the electronically controlled model
SMTO2.

• Comfortable seat
• Easy to clean porcelain bowl.
• Very quiet macerator/discharge pump – 60 dB (A).
• Stainless steel macerator blade.
• Large capacity discharge pump.
• Very low water consumption.

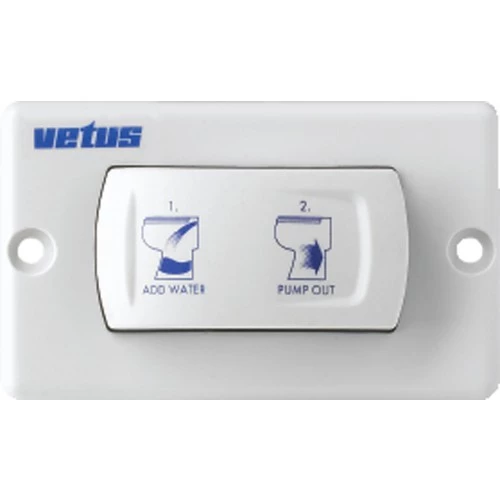

• Supplied with rocker switch.
• Easy to install and simple maintenance.
• Combined pump / macerator unit with a diameter of 96 mm.
• The pump motor power is 300 Watts and has a capacity of 36
  l/min at 3 metres head.
• Dual-flush system. The ECO button on the control panel will
  flush 1.2 litres of water. The NORMAL button will flush 2.2 litres.
  By pressing and holding the evacuation button, the toilets can be
  discharged without flushing. This is particularly useful to prevent
  overflowing on a heeled sailing boat.
• Maximum holding tank 3 metres above the toilet discharge
  connection. The maximum length of diameter parts 19 mm discharge
  hose can be up to 30 metres.
• The internal diameter of the outlet pipe is only 19 mm. This
  means that the toilet can be located in any convenient position
  aboard and can be connected simply to the waste water tank, using
  VETUS sanitation hose type SAHOSE.
• The discharge pumps are easily accessible for occasional
  cleaning if required.
• All toilets are provided with a water lock and non-return valve
  in the discharge line.

Specifications:

Control type	Tumbler switch
Voltage (V)	12 V
Current consumption (A)	25A
Soft close seat	No
Toilet seat height (mm)	No
Toilet width (mm)	–
Toilet depth (mm)	–
Weight (kg)	–
Colour	No
Material	Porcelain
Water supply diameter (inch)	Female G3/4
Water supply	Connect to water pressure system. 1,7 – 6 bar
Water consumption (litre)	Depends on user
Drain diameter (mm)	19
Max. delivery height (m)	3
Maximum drain length (m)	30
Pump output (litres/minute)	36
Panel dimensions (mm)	45 x 75
Panel build-in depth (mm)	40
Build-in panel protection	IP65
Control options	Fill , Flush
