VETUS Sani-Processor 120V 60Hz

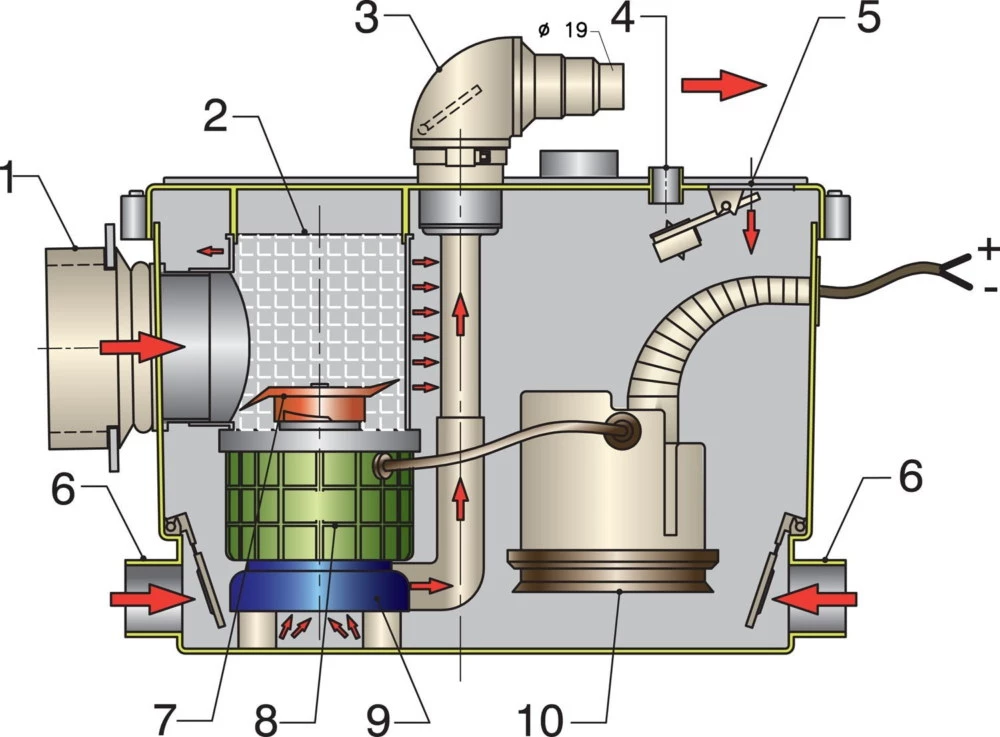

The Sani-Processor can be easily connected to a standard toilet, by
means of 102 mm diameter hose (with a minimum fall of 50 mm per
metre). When the toilet is flushed, the Sani-Processor will collect
the contents, macerate them and pump the resultant slurry into a
holding tank or directly overboard, through a hose of only 19 mm
diameter. The whole process takes between 10 and 30 seconds and
works almost silently. In the unlikely event of a blockage, the
unit can be easily cleaned by removing the inspection lid. The
connecting hoses must be odour-tight andVETUS recommend the use of
VETUS sanitary hose, type SAHOSE19.

TECHNICAL SPECIFICATIONS

• 120 Volt / 60 Hz.
• Macerator diameter: 98 mm
• Nominal power consumption: approx. 580 W.
• Dimensions: 420 x 120 x 360 mm (l x w x h)
• Hose from toilet to Sani-Processor: 102 mm, maximum length 4
  metres.
• Hose from Sani-Processor to holding tank: 19 mm, maximum length
  20 metres.
• The holding tank may be maximum 4 metres higher than the
  Sani-Processor
• Washbasin/bidet connections: 40 mm
• Weight: 4.8 kg
• Pump capacity: approx. 50 l/min at 4 m head.
