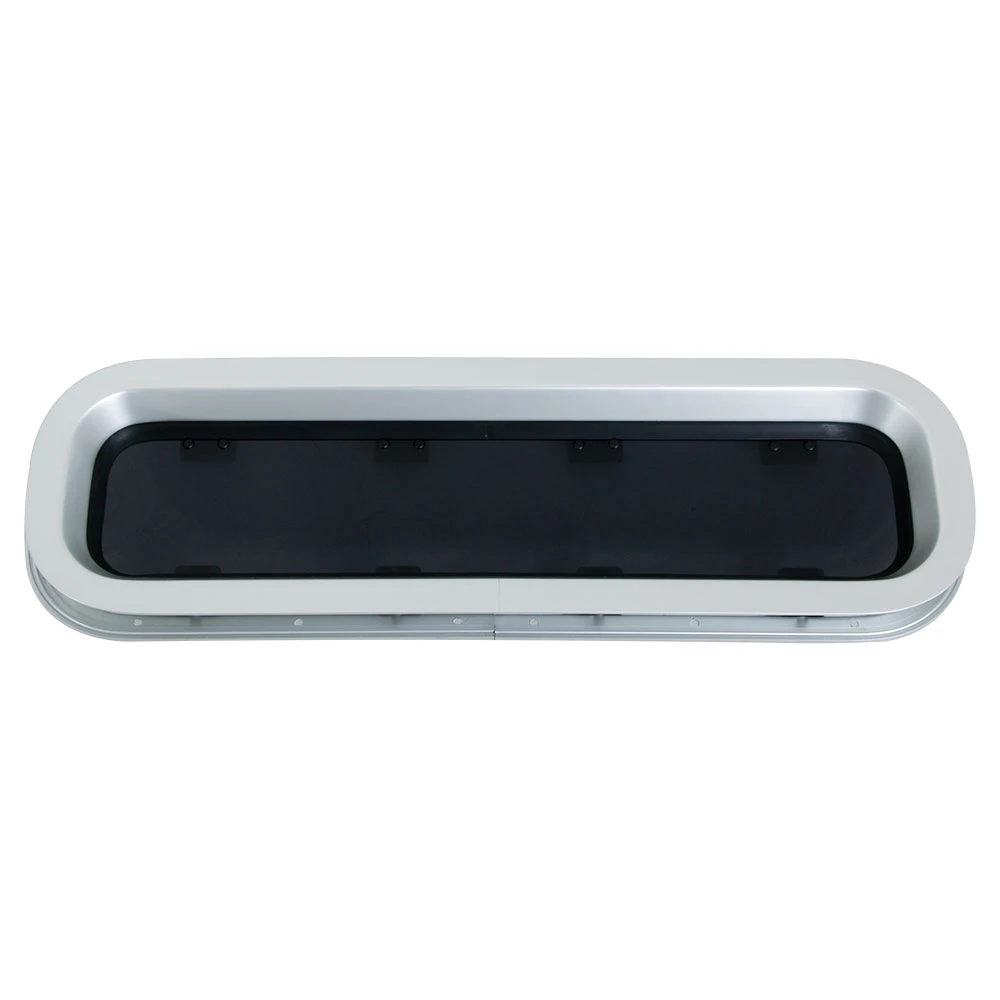

VETUS PZ633 Medium Duty Aluminium Porthole With Mosquito Screen

Watertight porthole

The VETUS PZ633 Medium Duty Aluminium Porthole is classified for use in the hull side. It has a
10mm opening pane in smoke colour set in an aluminium frame. The
portholes are fitted with friction type hinges, allowing it to stay
in any position. Two large diameter knobs ensure that the portholes
can be closed completely watertight. The aluminium frame is satin
anodised and the clamp type installation ensures that no fixings
are visible internally or externally. All portholes are supplied
with a composite mosquito screen as standard.

VETUS PZ633 Medium Duty Aluminium Porthole Features:

• 10mm thick opening pane in smoke colour
• Satin anodised aluminium frame
• Friction type hinges

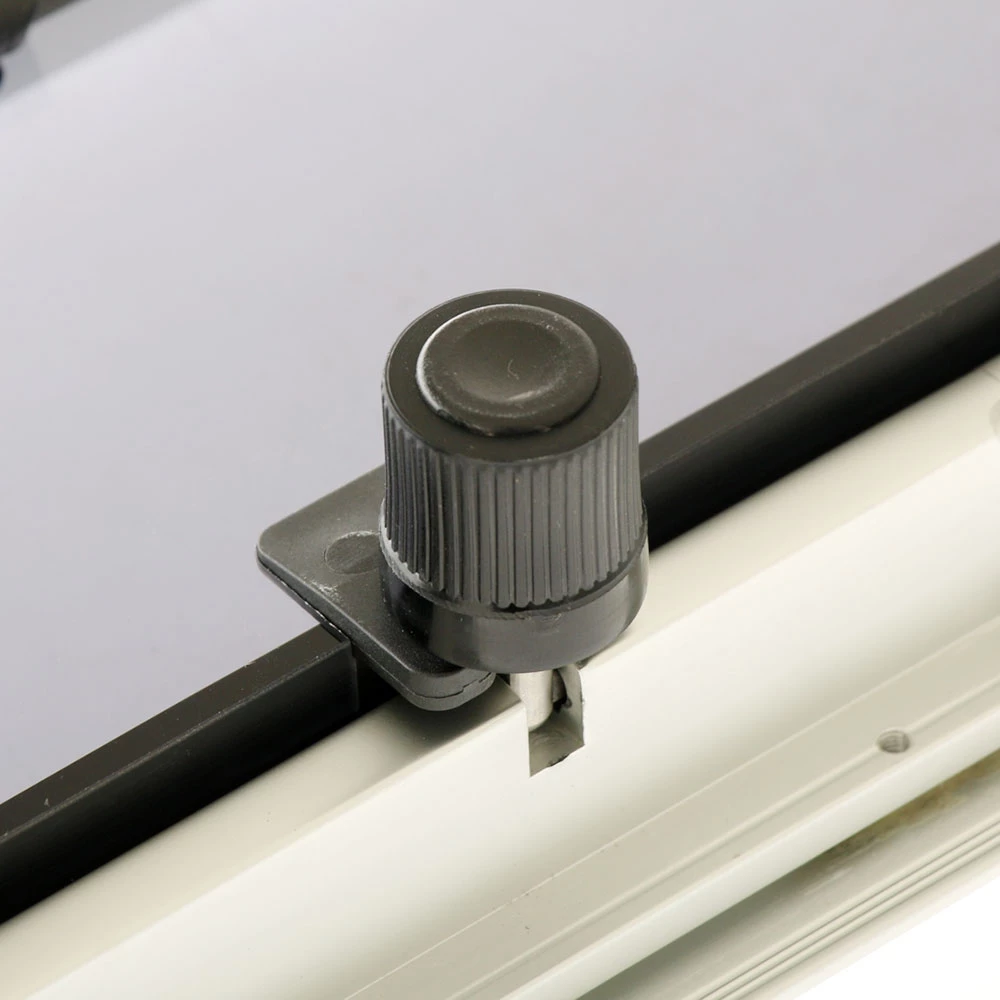

• Two large diameter knobs for watertight closure
• Clamp type installation

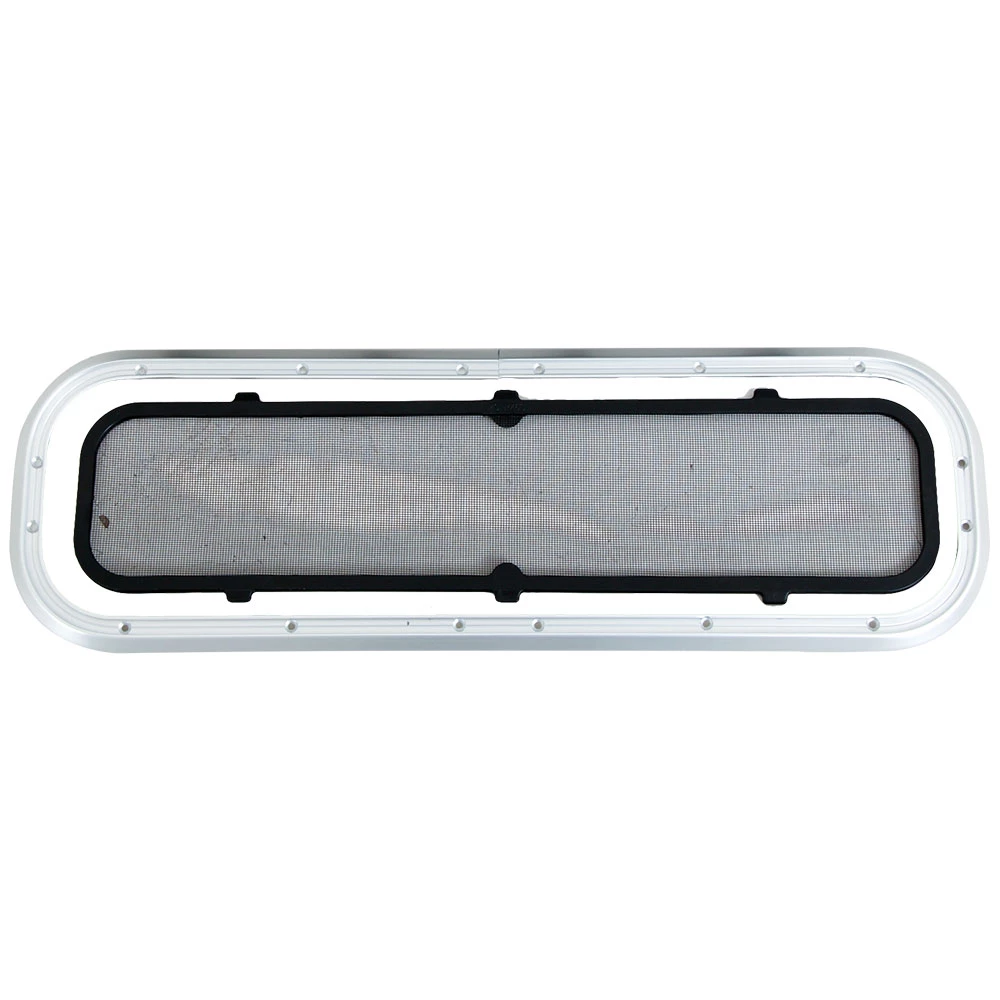

• Supplied with a composite mosquito screen as standard

VETUS PZ633 Rectangular Aluminium Porthole with Mosquito Screen Specifications:

• Model: PZ633
• External dimensions: 622 x 197mm
• Cut-out dimensions: 598 x 173 mm
• Cut-out radius: 61mm
