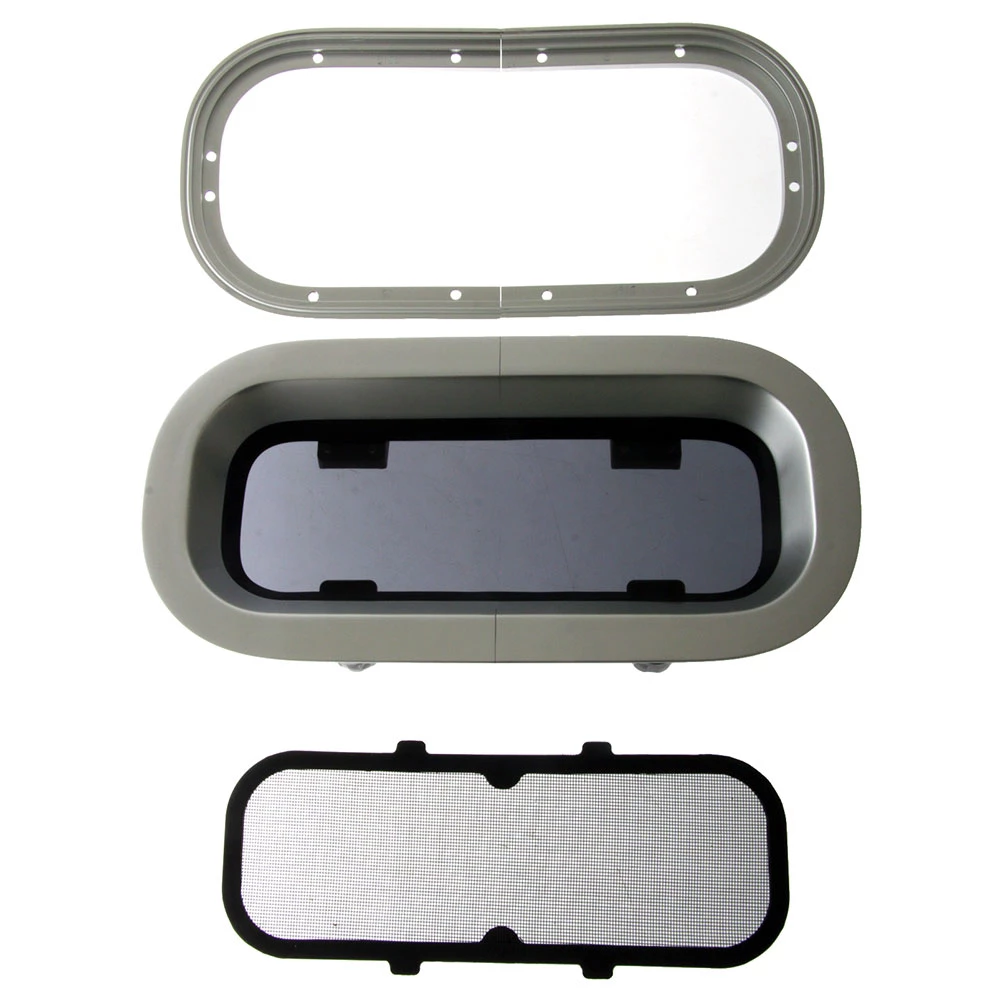

VETUS PZ623 Medium Duty Aluminium Porthole With Mosquito Screen

Watertight porthole

The VETUS PZ623 Rectangular Aluminium Porthole with Mosquito Screen is classified for use in the hull side. It
has a 10mm opening pane in dark smoke colour set in an aluminium
frame. The portholes are fitted with friction type hinges, allowing
it to stay in any position. Two large diameter knobs ensure that
the portholes can be closed completely watertight. The aluminium
frame is satin anodised and the clamp type installation ensures
that no fixings are visible internally or externally. All portholes
are supplied with a composite mosquito screen as standard.

VETUS PZ623 Rectangular Aluminium Porthole with Mosquito Screen Features:

• 10mm thick opening pane in smoke colour
• Satin anodised aluminium frame
• Friction type hinges
• Two large diameter knobs for watertight closure
• Clamp type installation
• Supplied with a composite mosquito screen as standard

VETUS PZ623 Rectangular Aluminium Porthole with Mosquito Screen Specifications:

• External dimensions: 368 x 179 mm
• Cut-out dimensions: 344 x 155 mm
• Cut-out radius: 61 mm
