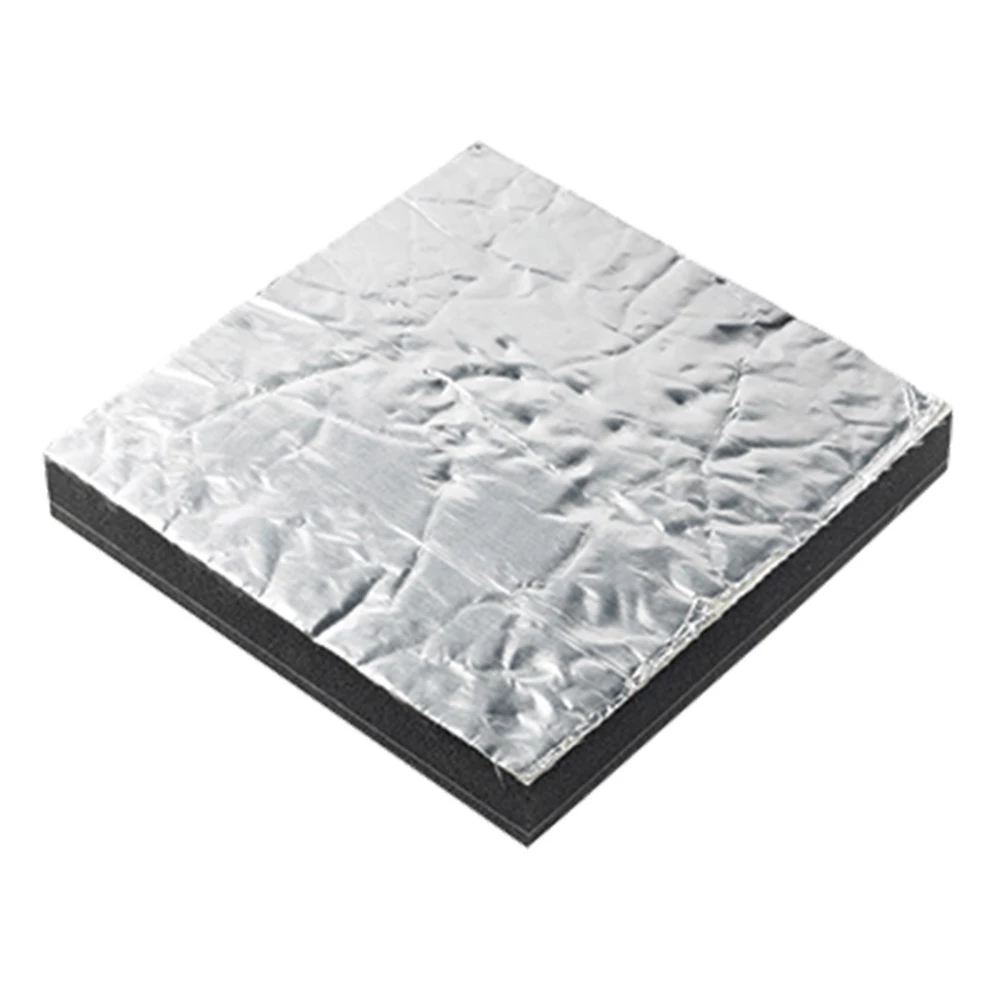

VETUS Prometech Single Sound Insulation Sheet 12mm Aluminium Facing

Enjoy the silence

The VETUS Prometech Single Sound Insulation Sheet is a high-performance acoustic polyurethane foam specially treated to offer flame retardancy to BS:476, parts 6 and 7, Class “0” – the highest rating on the market today! Combined with a single damping layer, each sheet provides good sound reduction and the highest level of safety. Ideal for generator enclosures.

Reinforced aluminium facing
Fibre-reinforced aluminium facing offers lightweight durability and radiant heat reflection. This facing is class 0 heat and fire resistant, fully liquid tight and easy to keep clean.

Single Damping Layer
The damping layer used in VETUS sound insulation is designed to prevent heavy low frequency vibrations from reaching the engine room walls or the hull of the boat. With a single damping layer, huge sound reductions are already achieved. The damping layer is made of vinyl loaded with naturally occurring minerals. This material is free of lead, unrefined aromatic oils and bitumen.

VETUS Prometech Single Sound Insulation Sheet Features:

• High-performance acoustic polyurethane foam
• Specially treated to offer flame retardancy to BS:476, parts 6 and 7, Class “0”, the highest rating on the market today
• Reinforced aluminium foil facing and self adhesive backing
• Material does not spread flames and limits the amount of heat released from the surface during a fire

VETUS Prometech Single Sound Insulation Sheet Specifications:

• Part: PT112A
• Sheet size: 1000 x 600 x 12mm
• Density: 94.7 kg/m³
• Thermal conductivity: 0,036 W/m.k
• Temperature Range: -30 C to 110 C
• Fire resistance: BS4735 self extinguishing
  FMVSS 302 self extinguishing
  ASTM D1692 max extent burnt 60mm
  UL94-HF1& VO
  BS476 Part 7 Class 1 & Part 6 & 7 Class 0
• Guaranteed sound insulation tested according to ISO 10534
• Weight: 3.6kg

Damping Layer Specifications:

• Single damping layer
• Thickness of damping layer: 2mm
• Density: 5kg/m²
• Fire resistance: FMVSS 302 Self-extinguishing
