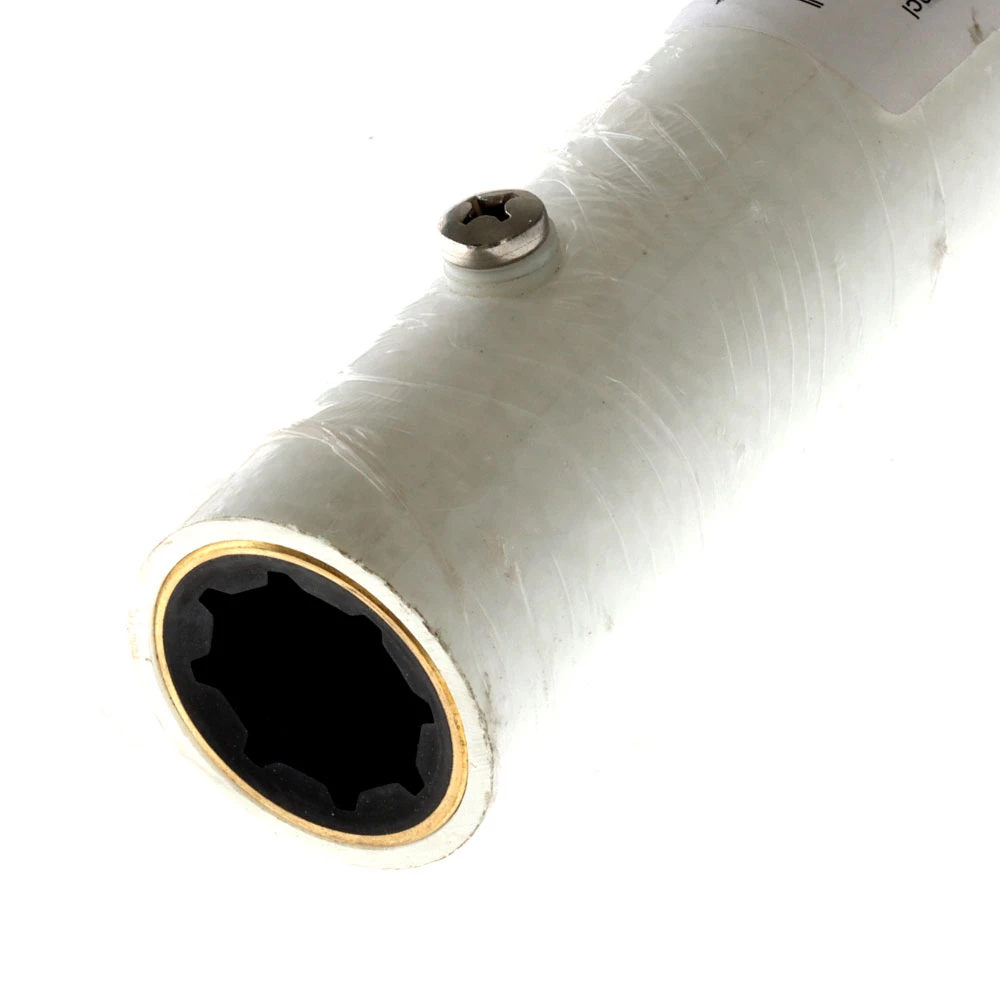

VETUS Polyester Stern Tube With 25mm Cutless Bearing 500mm

The shaft tube, which is provided with a cutless bearing, must
be bonded directly into the hull.

A propeller nut with integrated zinc anode comes as standard
with the propeller shaft(option).

There are two possibilities for water lubrication of the shaft
assembly:

1. By means of a water scoop G 3/8, with ball valve, hose pillar,
   1 metre of water hose and hose clamps (optional kit: WCAPS).
2. By tapping a small amount of water from the main engine’s raw
   water cooling circuit.

For the second option VETUS offers the ZWBKIT. With this kit you
have all you need to water lubricate your shaft assembly by using
water from the main engine’s raw water cooling circuit.

The kit consists of a T-piece(18-10-18mm), 3 meters of diameter
10 mm hose (DWHOSE10A) and 4 hose clamps.

Specifications:

Diameter D (mm)	25
J (mm)	40
Q (mm)	44
W (mm)	112
Y (mm)	127
Z (mm)	581,5
