VETUS Planus Ventilation Hatch

Stylish and durable

VETUS Planus hatch frames are hand polished prior to the
anodisation process. Not only does this result in a higher quality
appearance, but it’s designed to protect from dirt, salt and grease

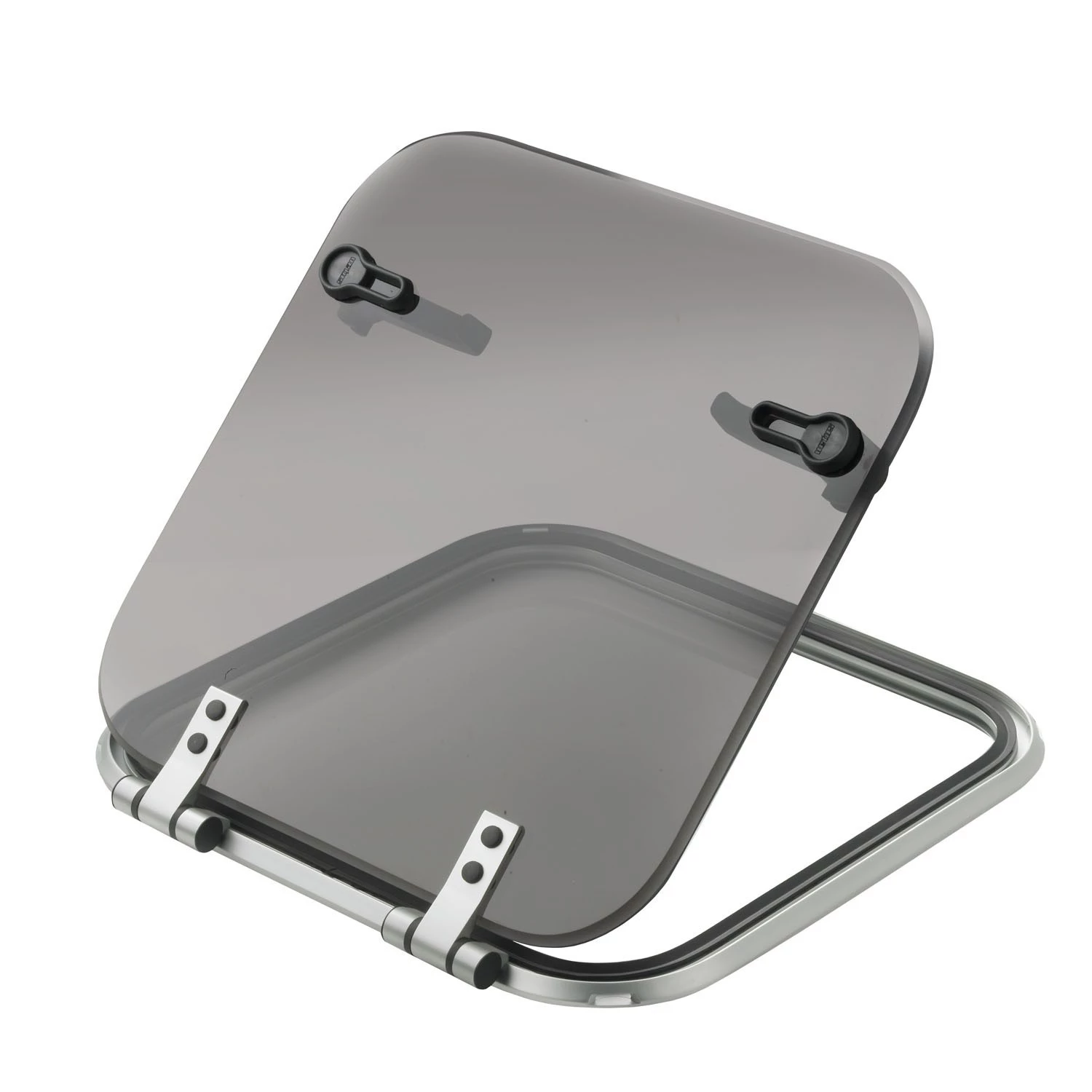

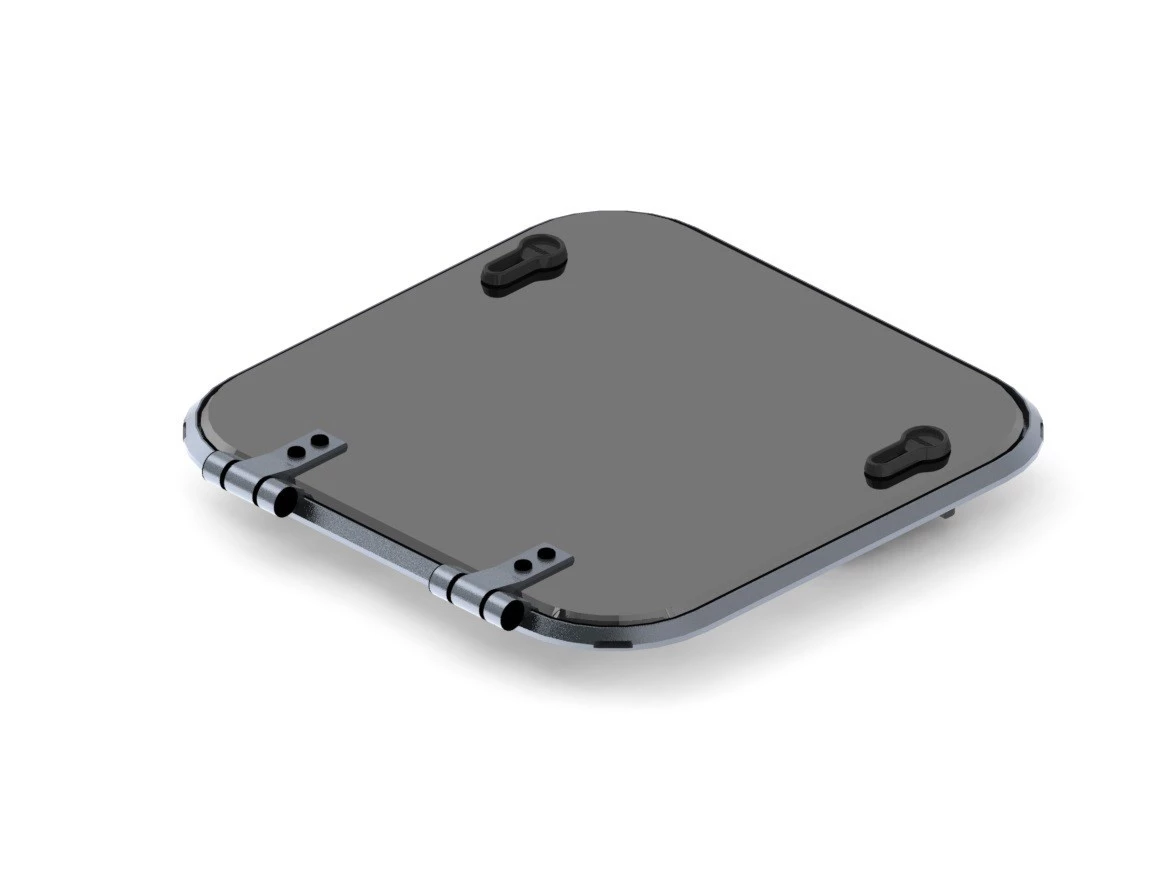

stains. The VETUS Planus Ventilation Hatch has a
satin sheen anodised aluminium frame with a 75mm corner radius and
a 10mm dark smoke coloured acrylic lid. And what’s more it has a
friction hinge that allows the hatches to remain open at any angle
up to 180 degrees.

VETUS Planus Ventilation Hatch Features:

• Can be opened from the inside or outside
• Can be locked or secured with an air gap for permanent
  ventilation
• Internal locking mechanism prevents opening from the outside
  when the boat is unattended
• Low external profiles ensures that ropes cannot get caught
  under the handles

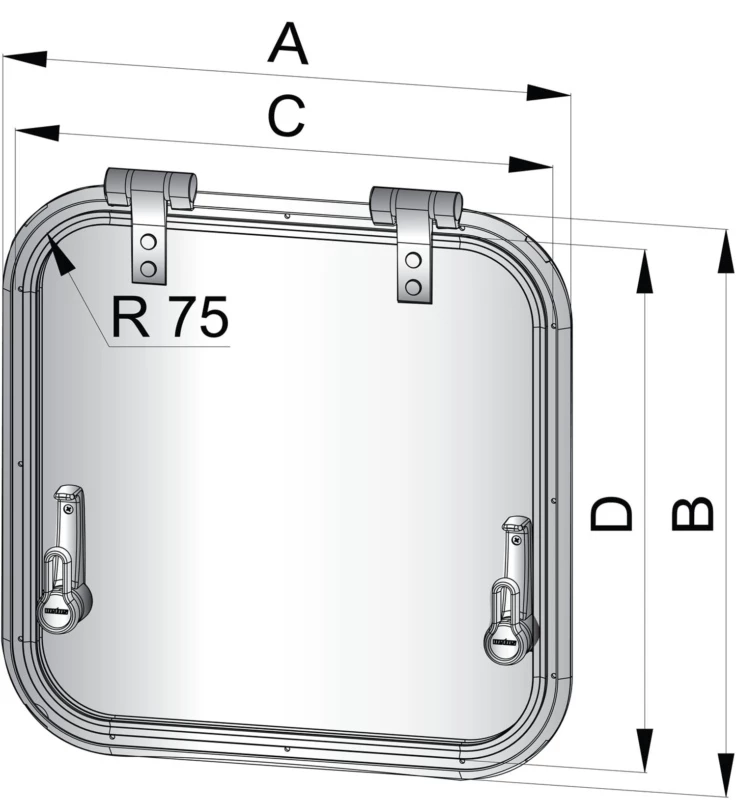

VETUS Planus Ventilation Hatch Size Chart:

Code	Type	External dimensions (AxB)	Cut-out dimensions (CxD)
PLA23L	2323	280 x 280mm	230 x 230mm
PLA30L	3023	350 x 280mm	300 x 230mm
PLA34L	3421	390 x 260mm	340 x 210mm
