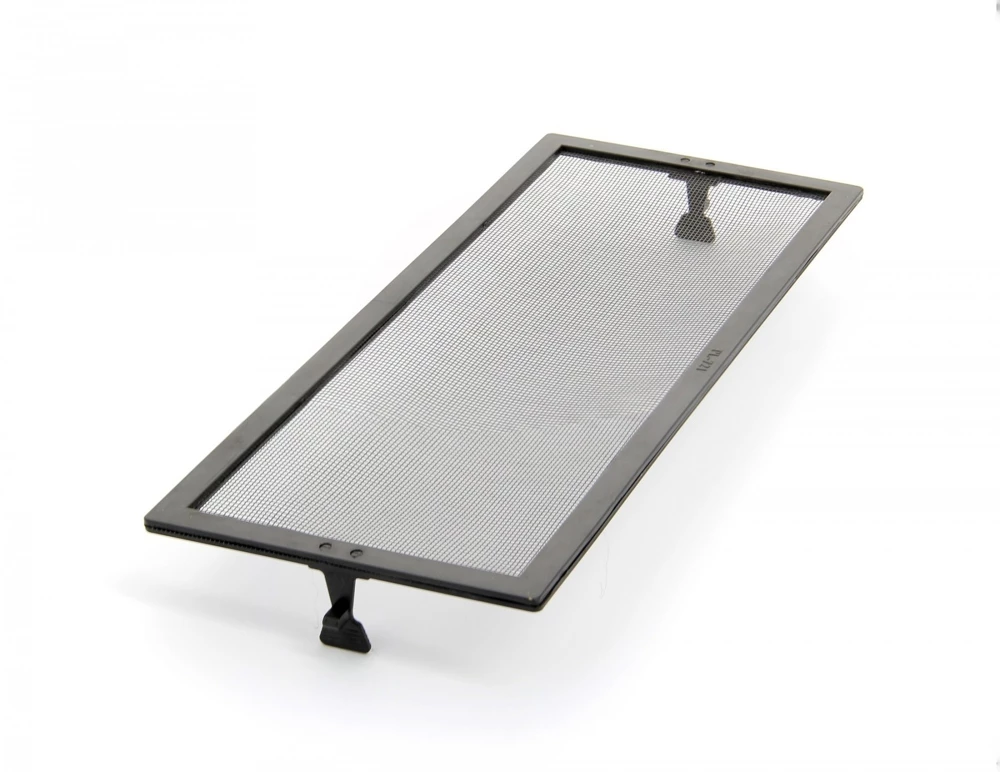

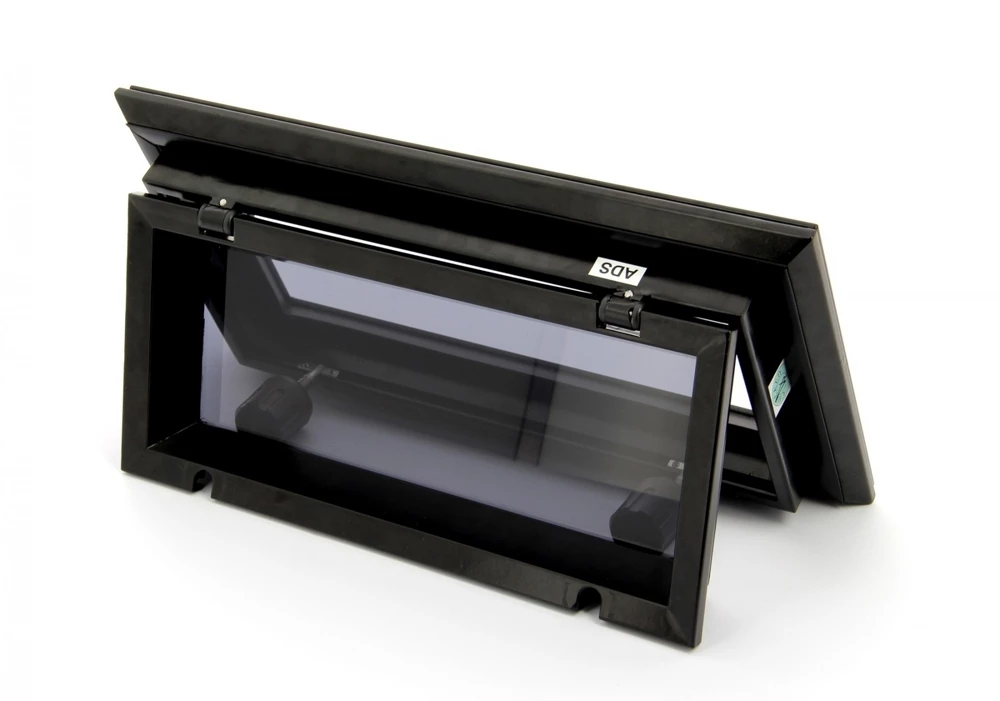

VETUS PL731 Ultra Slim Porthole With Mosquito Screen 171x429mm

The port which closely resembles fritted glass and is suitable to be fitted in fritted glass. A very shallow aluminum edge combined with the clamping mechanism ensures a very low profile portlight even when fitted in glass itself. Like all VETUS items, the PL series is thoroughly tested and is CE approved for use in A1 locations. To top it all off: all PL portlights are fitted with the new ergonomic knobs. The inside of the clamping profile can be finished with the supplied trim. All PL portlights come in fashionable satinblack coated aluminum with tinted acrylic for that premium look.
Highlighted

Satin black powder coated aluminum

A1 CE approved

10 mm thick dark smoke’ acrylic

Clamping system suitable for 2 to 20 mm wall thicknesses

Internal trim included

Mitered corners

Ultra slim portlight suitable for panel thickness of 2 – 20 mm.
Specifications:

External dimensions A x B (mm)	191x 449
Cut-out dimensions C x D (mm)	171 x 429
Cut-out radius R (mm)	No
Number of hinges	3
Number of adjusters	n/a
Number of handles	3
Type mosquito screen	No
