VETUS OB125 Hydraulic Outboard Steering Cylinder Max 125hp

Steering system for outboard engines/Z-drives

The VETUS OB125 Hydraulic Outboard Steering
Cylinder is specifically designed for outboards and Z
Drives up to 125Hp. The piston rode moves inside the cylinder.

VETUS OB125 Hydraulic Outboard Steering Cylinder
Features:

• Balanced cylinder diameter
• Supplied with combined 10mm hose connections and bleed
  nipples
• Piston rod has scraper seals to prevent damage from salt and
  dirt

VETUS OB125 Hydraulic Outboard Steering Cylinder
Specifications:

• Part number: OBC125
• Maximum rudder torque: 643 Nm
• Volume: 108.3 cm³
• Maximum output: 90 kW (125 hp)
• Maximum speed: 85 km/h (45 knots)

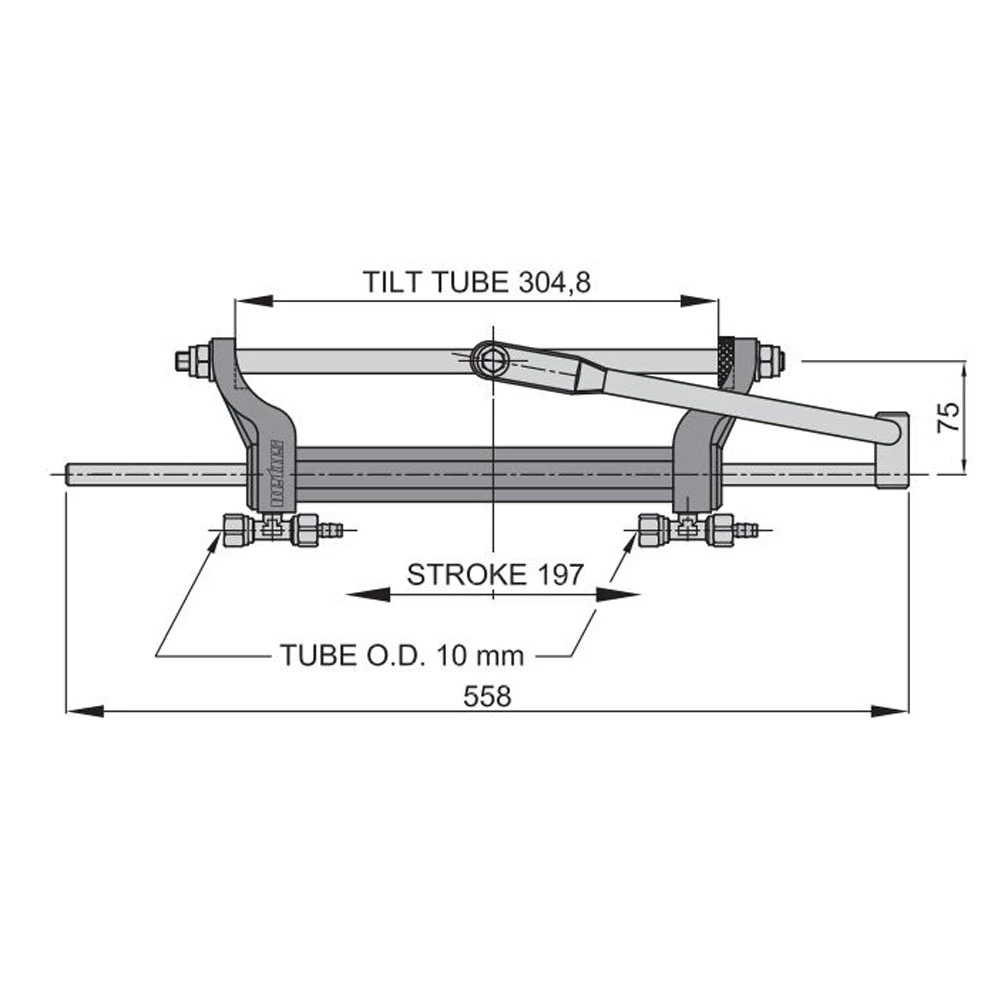

• Stroke: 197mm (7.8in)
• Type: Balanced cylinder
• Working pressure: 70 bar (70kg/cm², 6860 kPa,
  1015psi)
• Connectors: G 1/4 internal thread
• Weight: 3.7kg

VETUS OB125 Hydraulic Outboard Steering Cylinder Max 125hp
Installation Instructions
