Designed for horizontal installation
The body of the VETUS NLPH Horizontal Waterlock/Muffler consists of 2 rotatable chambers and fully rotatable hose connections, ensuring simple and time saving installation in a wide range of applications.
VETUS NLPH Horizontal Waterlock/Muffler
- Type NLPH
- Suitable for a wide range of applications
- Suitable for Ø 40, 45, 50, 60, 75 or 90 mm internal hose diameters
- Comes with 2 securing straps
VETUS NLPH Horizontal Waterlock/Muffler Specifications:

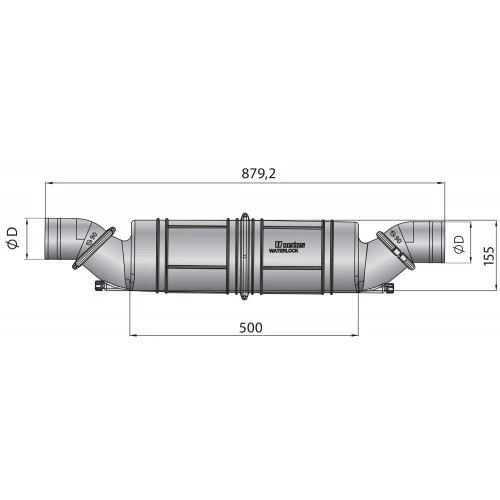

| Type | Capacity | A | B | C | Diameter |
|---|---|---|---|---|---|
| NLPH40 | 3L | 652mm | 400mm | 110mm | 40mm |
| NLPH45 | 3L | 652mm | 400mm | 110mm | 45mm |
| NLPH50 | 3L | 652mm | 400mm | 110mm | 50mm |
| NLPH60 | 10L | 879mm | 500mm | 155mm | 60mm |
| NLPH75 | 10L | 879mm | 500mm | 155mm | 75mm |
| NLPH90 | 10L | 879mm | 500mm | 155mm | 90mm |
