VETUS MTC30 Kit

As an attractive solution for smaller boats, VETUS now offers a
complete steering kit at a very competitive price.

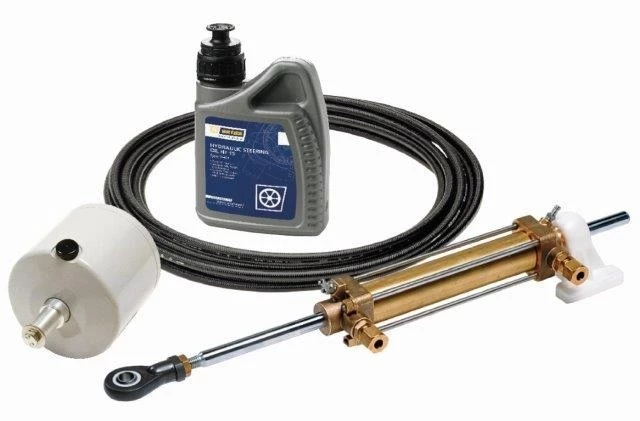

This kit (code MTC30KIT) includes:

• Pump type HTP2010 (white)
• Fittings to connect to diameter 8 mm hose
• Cylinder type MTC3008
• Nylon hose diameter 8 mm type HS04N (15 metre roll)
• Hydraulic steering oil type VHS1 (1 litre)
• All required fittings

• VETUS has many years experience with these components, ensuring a
  reliable and professional quality kit.
  All parts are manufactured to the highest standards using the best
  materials, for long service life, corrosion resistance and
  operating efficiency.
  The pump is of the axial piston type, with internal pistons that
  are directly actuated by the steering wheel; the most reliable
  system for safe hydraulic steering.
  The cylinder is of the double-acting type and mounted on a base,
  allowing it to swing according to the arc described by the rudder
  arm.

  The new MTC30KIT replaces previously individually available
  components – MTC3008 cylinder and HTP2008 / HTP3008 pumps.
  Therefore, the following codes are now discontinued:
  HTP2008 – HTP2008B – HTP2008R – HTP2008RB – HTP3008 – HTP3008B –
  HTP3008R – HTP3008RB.
  All steering pumps fitted with 10 mm compression fittings are still
  available and can be supplied with 8 mm fittings – please see the
  table below for the product codes.
  All hoses and accessories will also remain available in both 8 and
  10 mm.

  Specifications

• Max. Torque: 294 Nm (30 kgm) (216 ft.lbs)
• Wheel turns: 3.4
• Stroke 150 mm
• Volume 67 ccubic metre
• Length of tiller arm 129 mm
• Pump shaft: diameter 3/4′ with 1:12 taper
• Now available:
  MTC30KITHydraulic steering kit incl. cylinder
  (MTC3008), pump (HTP2010), diameter 8 mm nylon hose (15 metre
  roll), diameter 8 mm fittings and 1 litre hydraulic oil
  To replace an existing pump, order the appropriate size
  pump with 10 mm fittings and the following components:
  HS1010MS:Set of 2 compression fittings for
  diameter 8 mm hose to replace diameter 10 mm fittings in the
  pump.
  HS1011S: Set of 2 compression fittings for
  diameter 8 mm hose to replace diameter 10 mm fittings in the pump.
  Pack of 20 hose inserts to fit diameter 8 mm hose.
