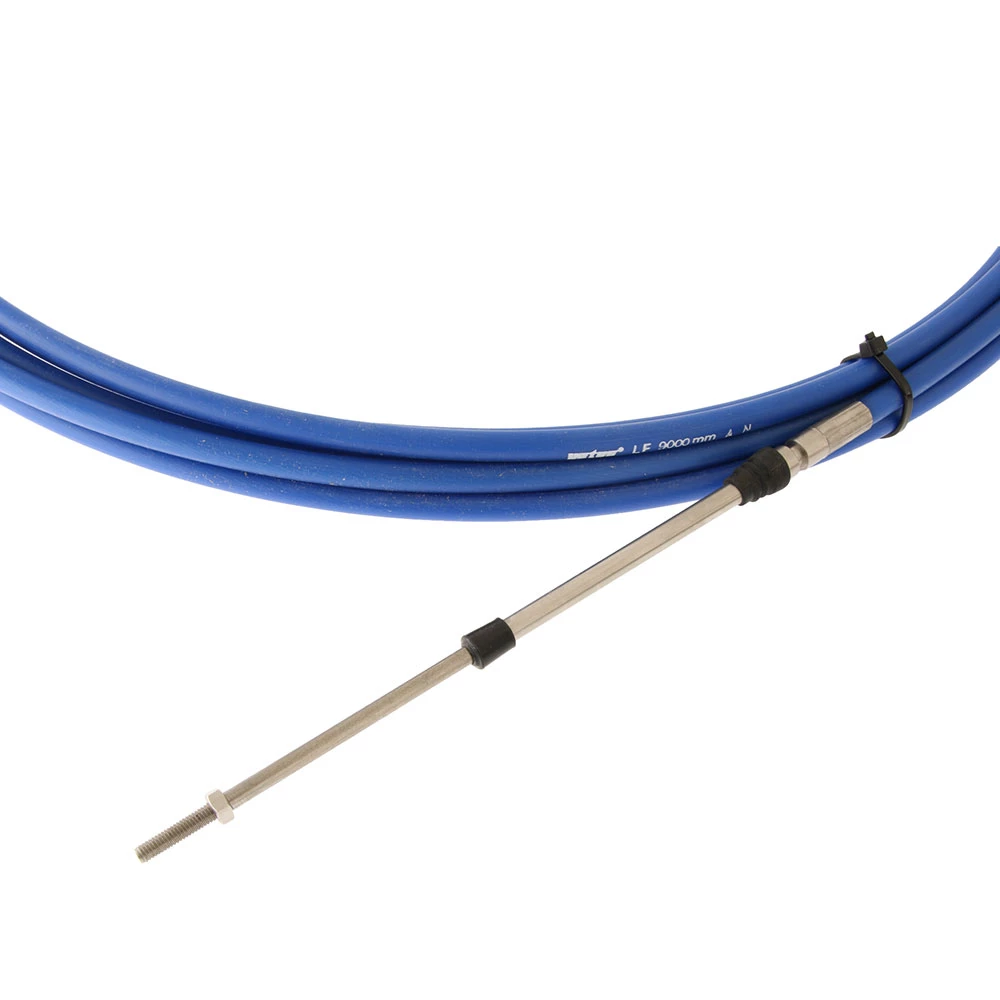

VETUS Low Friction Push Pull Cable

Superb strength and flexibility

This high quality push-pull cable uses a multi-strand wire core for
superb strength and flexibility. The core is provided with a ribbed
synthetic sheath, ensuring that contact with the outer casing is
kept to a minimum. Therefore, LF type cables are ideal for long and
complicated runs and for dual station installations.

VETUS Low Friction Push/Pull Cable Specifications:

• Nominal travel: 75mm
• Minimum bend radius: 165mm
• Stroke: 76.2mm (3in)
• Standard rod: 10-32 UNF threaded ends

Note: The Vetus range of push pull cables are
Morse compatible. The measuring of the length is very important –
measure from control along unobstructed cable routing to centre of
outboard. Add four feet to allow for loop which provides
unrestricted engine movement. Round up to next whole foot and
order required cable part number. (Last two digits of cable part
number equal cable length in feet.), If for inboard engines then
the actual length of the present cable is needed.
