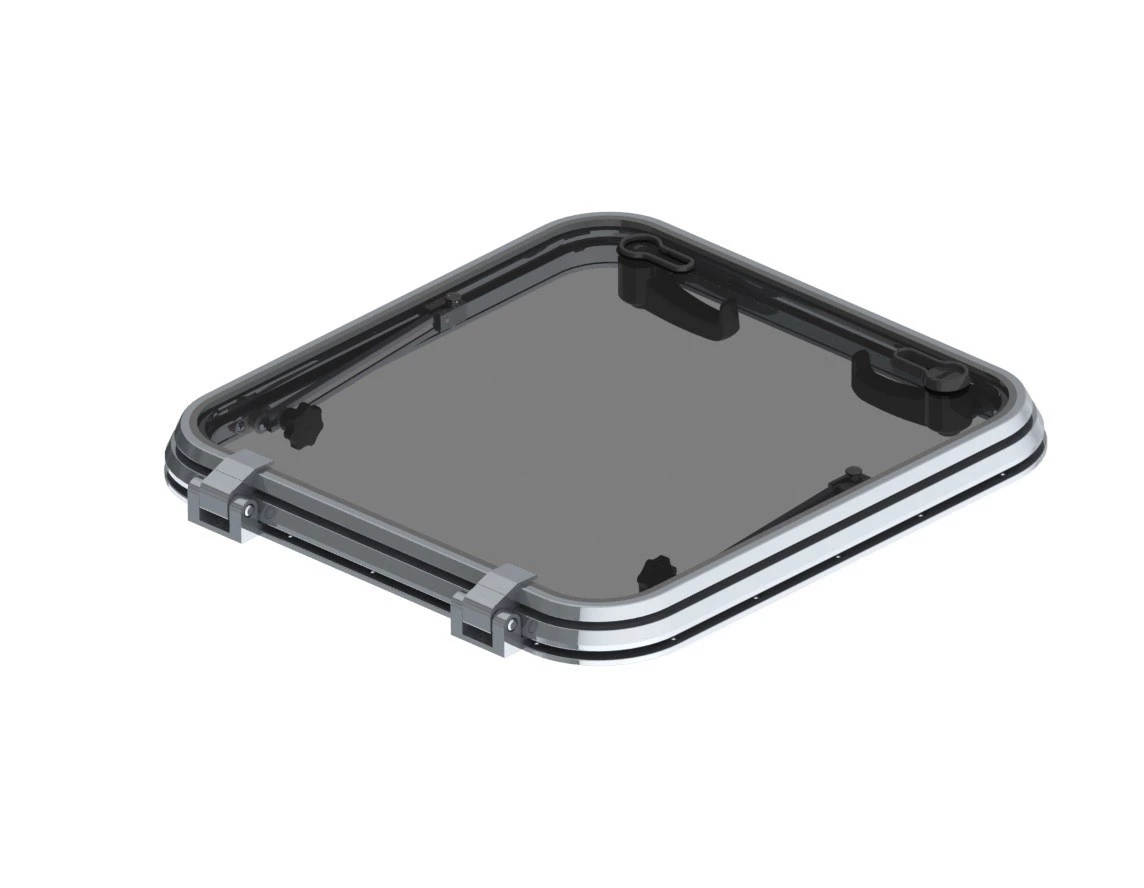

VETUS Libero Escape Hatch

Heavy-duty escape hatch

The VETUS Libero Escape Hatch has a hand polished
and anodised aluminium frame with a 32/55mm corner radius and a
10mm ‘dark smoke’ coloured acrylic lid. And what’s more it comes
with adjusters allowing the lid to be held open at almost any angle
up to 90°. Quality made by VETUS for years of reliable service.

VETUS Libero Escape Hatch Features:

• Hand-polished and anodised aluminium frame
• 55mm corner radius
• 10mm dark smoke coloured acrylic lid
• Adjusters – allows lid to be help open at almost any angle up
  to 90°
• Suitable for design category A, Area II
• Support type: Twin Adjustable Stainless Stays

VETUS Libero Escape Hatch Specifications:

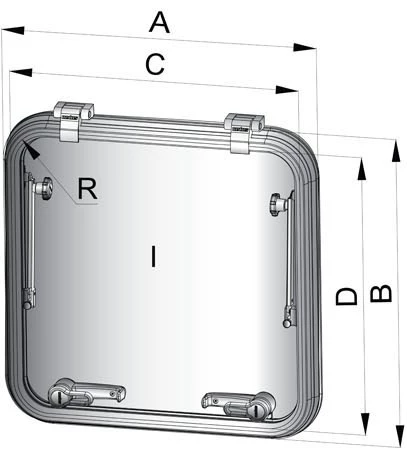

Model no.	External Dimensions (A x B)	Cut-out Dimensions (C x D)	Cut-out Radius R	Hinges	Adjusters	Handles
LIB4155L	470 x 470mm	410 x 410mm	55mm	2	1	2
LIB5032L	560 x 560mm	500 x 500mm	32mm	2	2	2
LIB5055L	560 x 560mm	500 x 500mm	55mm	2	2	2
LIB6232L	680 x 680mm	620 x 620mm	32mm	2	2	2
LIB6255L	680 x 680mm	620 x 620mm	55mm	2	2	2
