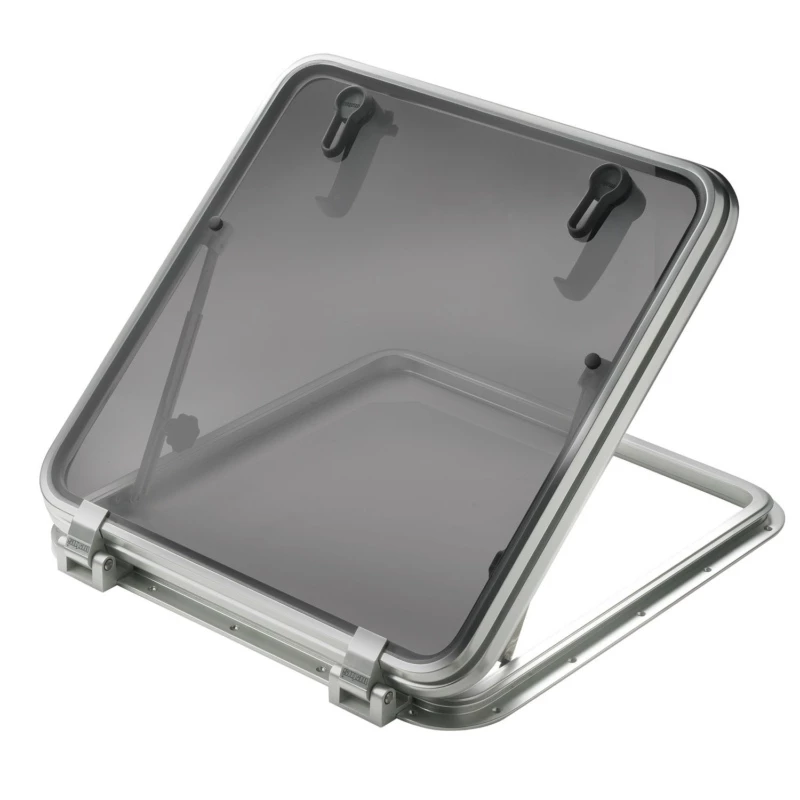

VETUS Libero Deck Hatch

Heavy-duty deck hatch

The VETUS Libero Deck Hatch has a hand polished
and anodised aluminium frame with a 32/55mm corner radius and a
10mm ‘dark smoke’ coloured acrylic lid. And what’s more it comes
with adjusters allowing the lid to be held open at almost any angle
up to 90°. Quality made by VETUS for years of reliable service.

VETUS Libero Deck Hatch Features:

• Hand-polished and anodised aluminium frame
• 55mm corner radius
• 10mm dark smoke coloured acrylic lid
• Adjusters – allows lid to be help open at almost any angle up
  to 90°
• Suitable for design category A, Area II
• Support type: Twin Adjustable Stainless Stays

VETUS Libero Deck Hatch Specifications:

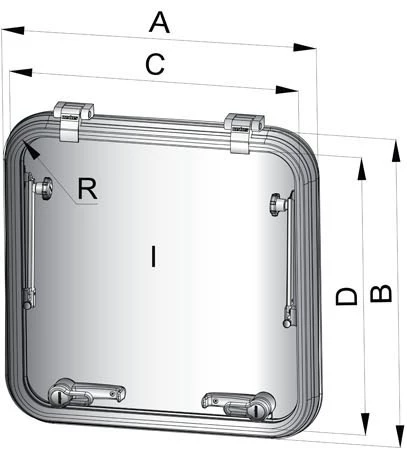

Model no.	External Dimensions (A x B)	Cut-out Dimensions (C x D)	Cut-out Radius R	Hinges	Adjusters	Handles
LIB3232L	400 x 255mm	450 x 320mm	32mm	2	1	2
LIB3255L	400 x 255mm	450 x 320mm	55mm	2	1	2
LIB3732L	560 x 430mm	500 x 370mm	32mm	2	1	2
LIB3755L	510 x 380mm	500 x 370mm	55mm	2	1	2
