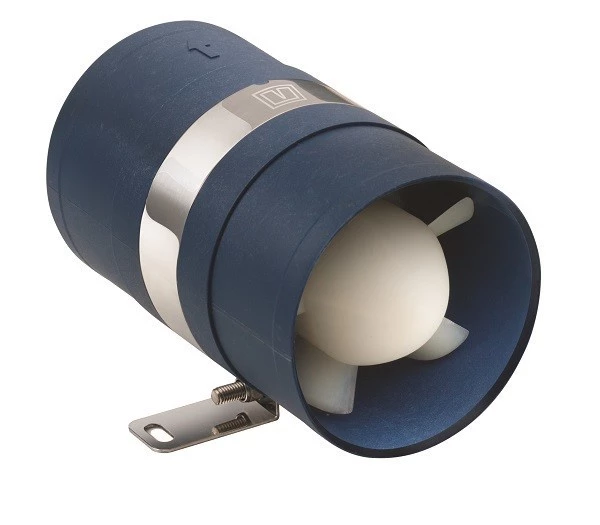

VETUS In-Line Extraction Ventilator 24 V Diameter 102 Mm

The TWINLINE series is rated ignition protected’, making it safe
to use when a petrol/gasoline engine is installed or in spaces
where combustible gases can accumulate.

These dangerous fumes can be extracted safely with the TWINLINE
ventilators, so you can fire up your engine with peace of mind. The
TWINLINE series is also perfectly suitable to simply extract the
heat from your engine room, making it a valuable addition to diesel
and electric powered boats as well. These powerful ventilators have
a very compact housing, allowing installation in the most confined
spaces.

A versatile ventilator series suitable for a wide variety of
applications! TWINLINE ventilators are not designed for continuous
use and should be linked with the vessels power system. They are
available from stock.

Note: VETUS does not recommend using any type of extraction
ventilator to provide air to the main engines. A versatile
ventilator series suitable for a wide variety of applications!

Features

• Ignition protected to ISO 8846, ideal for application in engine
  rooms
• Waterproof to IP67
• Complies with ISO 9097 Marine Standard
• Capacity (depending on size) from 5 to 7 cubic metre per
  minute
• Static pressure: 36 mm H2O
• Very compact dimensions
• Available in both 12 V and 24 V
• Hose may be connected to Scirocco (TWINLINE diameter 76 mm only
  ) or Typhoon (TWINLINE diameter 76 mm and diameter 102 mm) shell
  ventilator
• Ventilator TWINLINED is for extraction of heat from the engine
  room when engines are stopped or petrol vapours. Ignition
  protected, excluding hose.

Specifications:

Ignition protection	Yes
Watertight	Yes
Capacity (cubic metre/minute)	7
Static pressure	36 mm H2o
Voltage (V)	24 V
Suitable for hose	102
