VETUS Ignition Protected Bow Thruster 55kgf 12V

Installing an electric bow or stern thruster in a petrol (gasoline)
engined boat can be very dangerous, due to the possibility of the
electric motor igniting fuel vapour. In order to eliminate the
risk, this special housing will shield the bow or stern thruster
from potentially explosive vapour.

The housing enables the thruster to comply with the ISO 8846 Marine
ignition protection standard. In addition to the standard thruster,
the set consists of a watertight (IP65) housing for the electric
motor and relays, together with all required seals, electrical
connectors and fastening components.

An automatic fuse for the control loom is also supplied. This can
be reset externally without opening the housing. For both 12 and 24
volt supply. They can also be used as stern thrusters, in
combination with the appropriate kit.

Because the motor housing is watertight, these sets are also ideal
for use where the bow or stern thruster is installed in a wet or
humid space.

Specifications:

Voltage (V)	12 V
Ignition protection	Yes
Thrust (N / kgf)	550 / 55
Power (kW)	3
Motor, reversible D.C.	Yes
Internal tunnel diameter (mm)	150
Weight (kg)	20
Current consumption (A)	350
Continuous operating time (min)	4
Max. operating time (minutes)	4
Main fuse ‘slow blow’ (A)	250
Batteries 12 V, min./max. Ah	1×105 / 1×200
Battery cables, length pos./neg. cables (m/mm)	0-12 / 70
Battery main switch: model BATSW / type BPMAIN	250 / 12

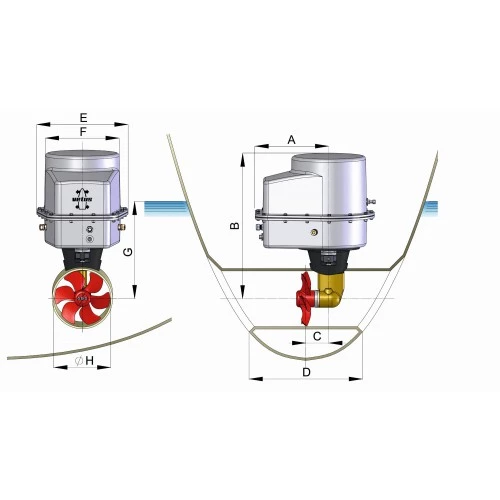

Size A in mm, see drawing	195
Size B in mm, see drawing	412
Size C in mm, see drawing	79
Size D min./max. in mm, see drawing	300 / 600
Size E in mm, see drawing	250
Size F, diameter in mm, see drawing	195
Size G min. in mm, see drawing	150
Size H, diameter in mm, see drawing	150
