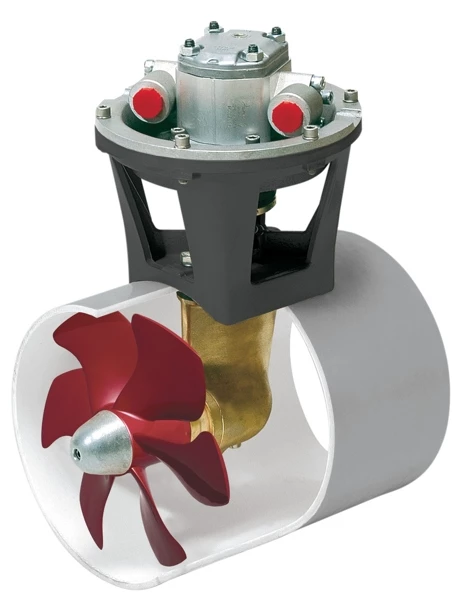

VETUS Hydraulic Bow Thruster 160kgf With 9.5kw Hydro Motor

This model of hydraulic bow thruster in the VETUS range, featuring
as standard a hydraulic motor.
This hydraulic motor is driven by a hydraulic pump, if a hydraulic
pump and associated tank are already installed on board, then, in
most cases,this assembly can be used for driving the bow thruster
too.

Some marine engine manufacturers, e.g. VETUS DEUTZ, supply as
standard a special PTO (Power Take Off) connection, which greatly
simplifies the installation of the hydraulic pump.
In addition to the pump and the hydraulic storage tank, VETUS can
also supply the required load sensing and control devices, as well
as the high pressure hydraulic hoses, complete with end
fittings.

In addition to the pump and the hydraulic storage tank, VETUS can
also supply the required load sensing and control devices, as well
as the high pressure hydraulic hoses, complete with end
fittings.

This hydraulic bow thruster may be fitted to a GRP, steel or
aluminium tunnel or used as a stern thruster using the appropriate
installation kit. The three most powerful VETUS hydraulic bow
thrusters can also be powered using a specially prepared diesel
power pack, instead of a pump on the main engine. In this case, the
matching hydraulic pump will be supplied as part of the power pack.
Installing a power pack on board can considerably reduce the
required generator set capacity by operating hydraulic functions
which are normally electrically powered.

Specifications:

Thrust (N / kgf)	1600 (160)
Hydraulic motor power (kW)	9,5
Hydraulic motor capacity (ccubic metre/rev)	7,0
Flow rate (litres/minute)	24
Operating pressure (bar)	250

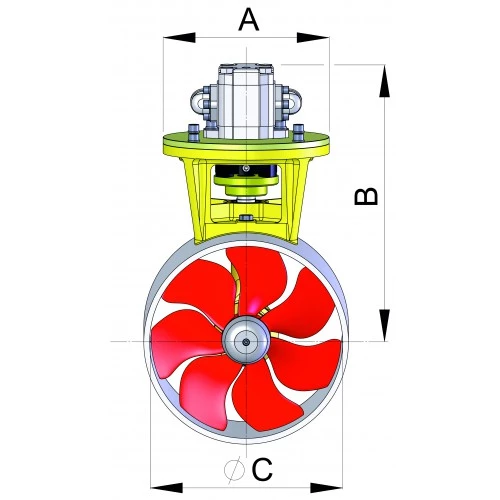

Diameter A (mm)	240
Length B (mm)	345
Diameter C (mm)	250

Product Data Sheet
