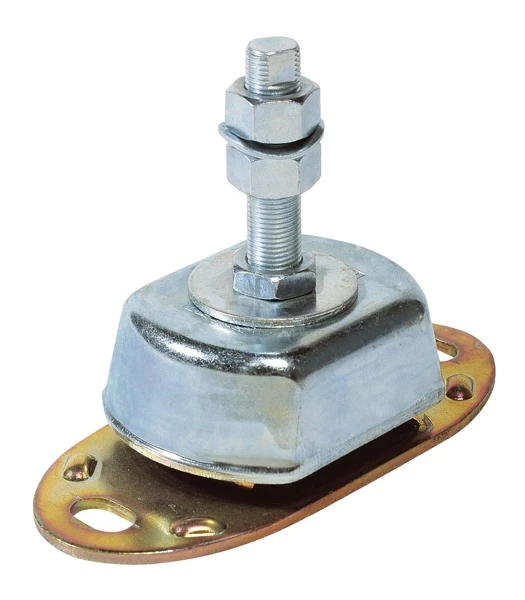

This sturdy vibration damper has a maximum load of 100 kg and is
suitable for engines in the power range between 30 and 125 kW.
Specifications:
| Stiffness ratio – vertical | 1 |
|---|---|
| Stiffness ratio – athwartships | 1,2 |
| Stiffness ratio – fore and aft | 3,5 |
| Min. load (kg) – static | 40 |
| Min. compression (mm) – static | 2 |
| Max. load (kg) – static + dynamic | 100 |
| Max. compression (mm) – static + dynamic | 5 |
| Hardness in degrees Shore | 40 |
