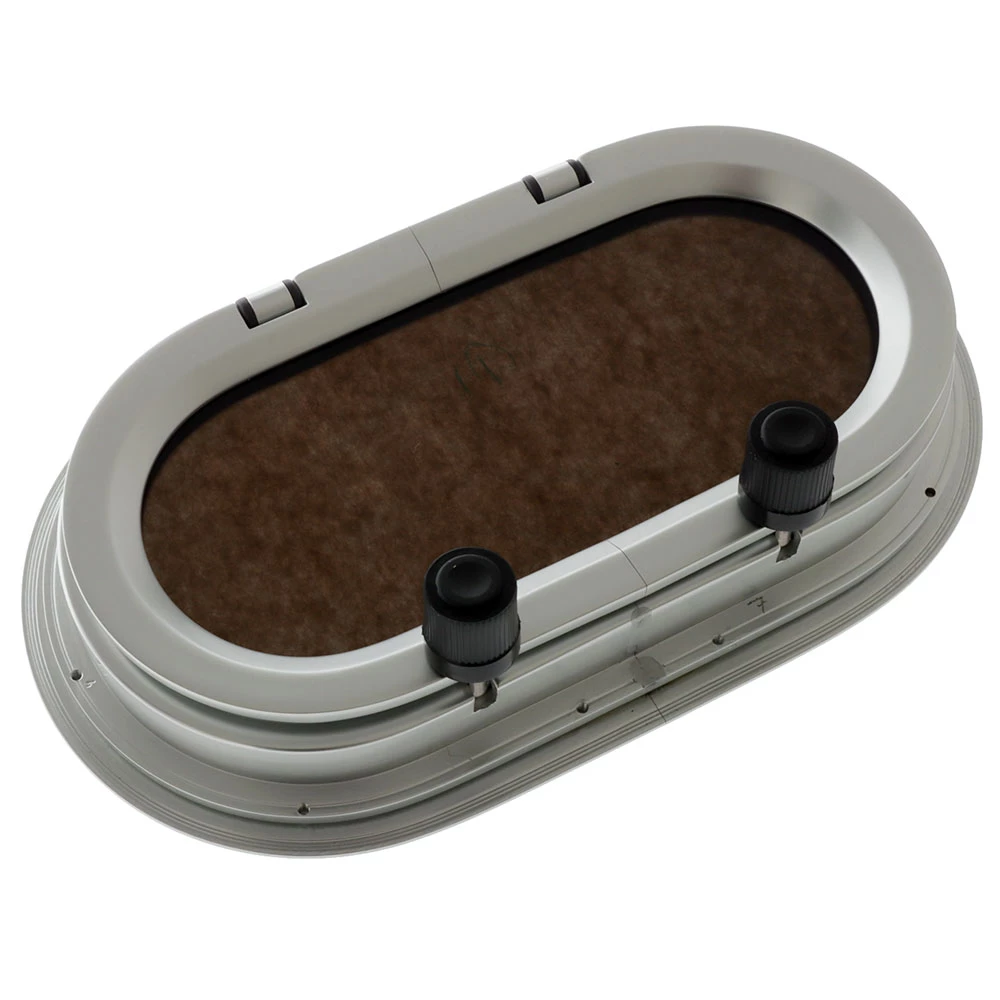

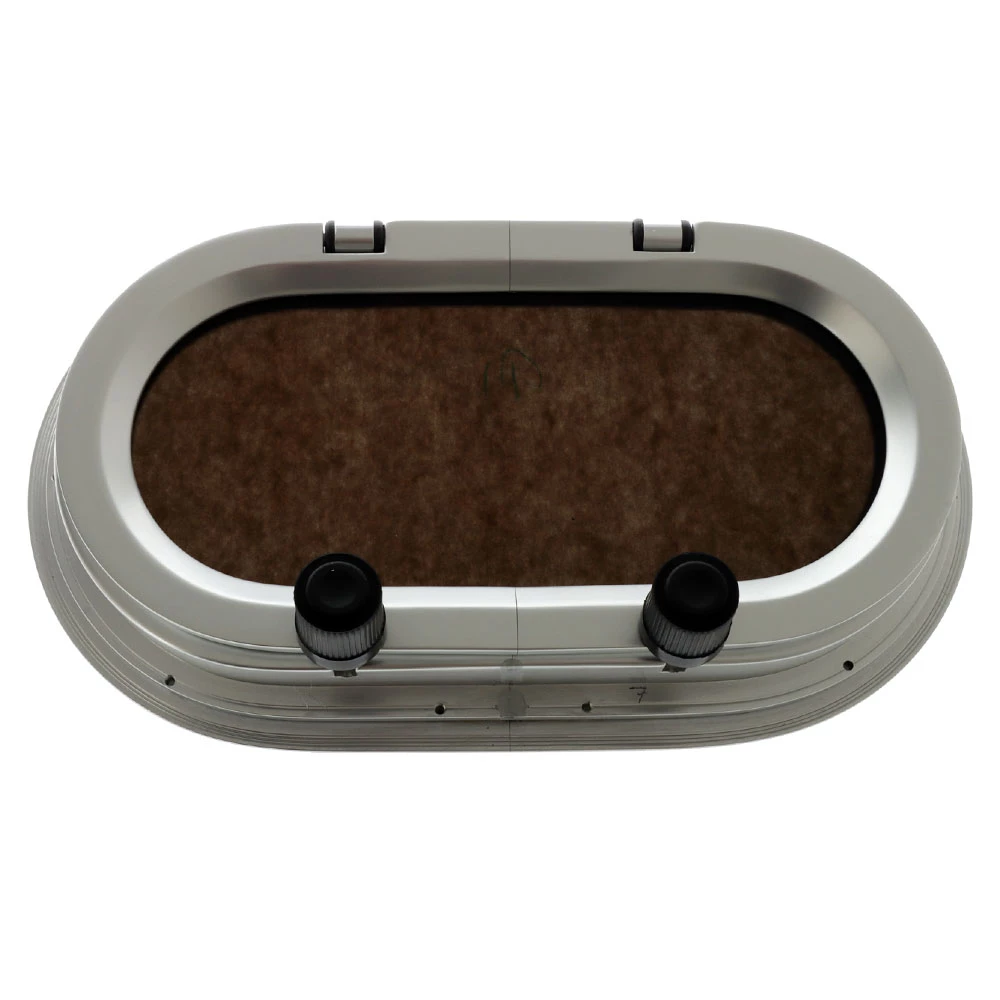

VETUS Heavy Duty Oval Aluminium Porthole With Mosquito Screen 344x198mm

Heavy duty porthole

The VETUS Heavy Duty Oval Aluminium Porthole is
suitable for use in the hull side. The 10mm ‘smoke’ coloured
opening pane is set in satin anodised aluminium frame. The clamp
fixing ensures that no fasteners are visible from either inside or
outside. This porthole can be held open in any position due to the

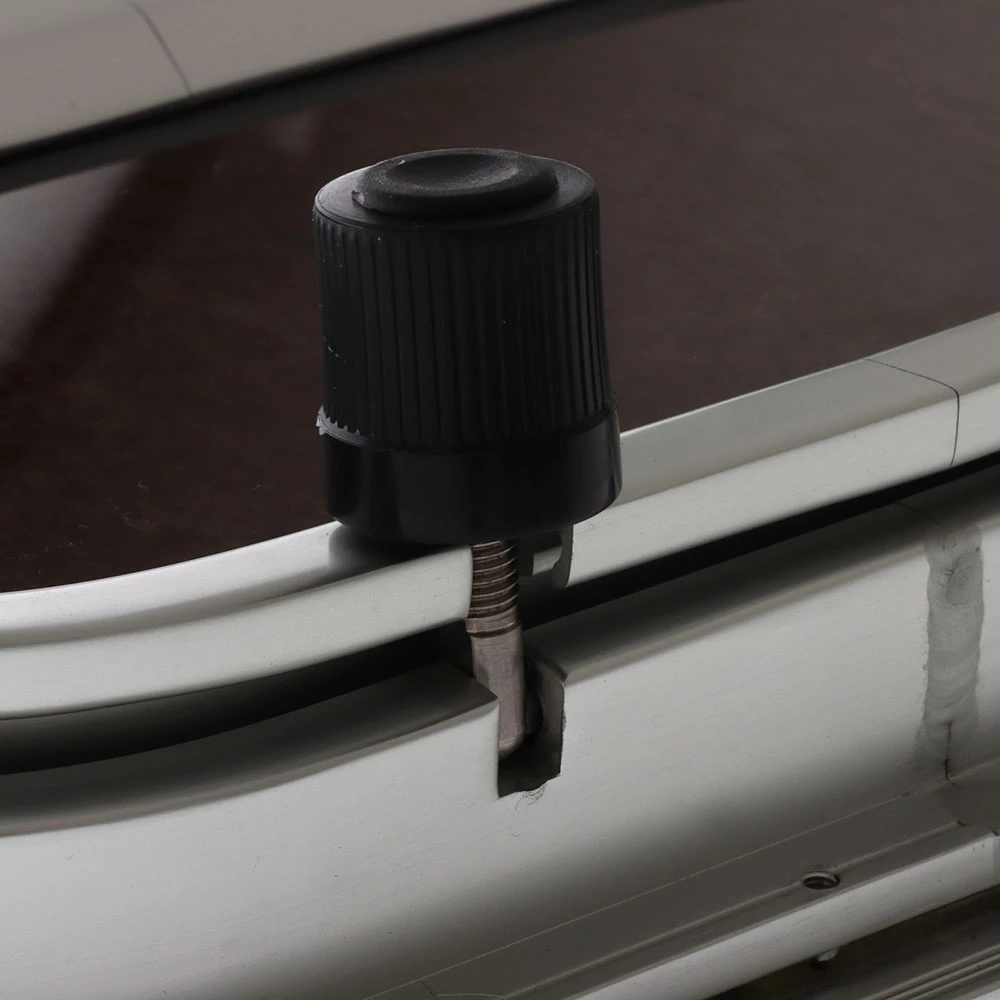

friction type hinges. In closed position knobs ensure water
resistance. The porthole can be fitted in a surface with a minimum
thickness of 2mm and a maximum thickness of 18mm. As standard a
mosquito screen is supplied.

VETUS Heavy Duty Oval Aluminium Porthole Features:

• Suitable for use in the hull side
• 10mm ‘smoke’ coloured opening pane
• Satin anodised aluminium frame
• Clamp fixing ensures that no fasteners are visible
• Friction type hinges: can be held open in any position
• Water resistant knobs (in closed position)
• Can be fitted in a surface with a minimum thickness of 2mm and
  a maximum thickness of 18mm
• Mosquito screen is supplied

VETUS Heavy Duty Oval Aluminium Porthole Specifications:

• Model: PM131
• External dimensions: 344 x 198 mm
• Cut-out dimensions: 320 x 174 mm
• Cut-out radius: 87 mm
• Mosquito screen type: HOR13
