VETUS Heavy Duty Oval Aluminium Porthole With Mosquito Screen

Heavy duty porthole

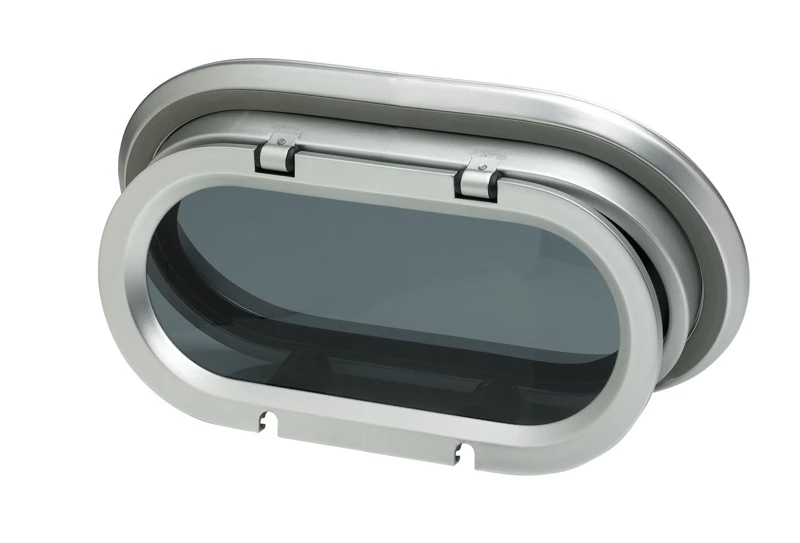

The VETUS Heavy Duty Oval Aluminium Porthole is
suitable for use in the hull side. The 10mm ‘smoke’ coloured
opening pane is set in satin anodised aluminium frame. The clamp
fixing ensures that no fasteners are visible from either inside or
outside. This porthole can be held open in any position due to the
friction type hinges. In closed position knobs ensure water
resistance. The porthole can be fitted in a surface with a minimum
thickness of 2mm and a maximum thickness of 18mm. As standard a
mosquito screen is supplied.

VETUS Heavy Duty Oval Aluminium Porthole
Features:

• Suitable for use in the hull side
• 10mm ‘smoke’ coloured opening pane
• Satin anodised aluminium frame
• Clamp fixing ensures that no fasteners are visible
• Friction type hinges: can be held open in any position
• Water resistant knobs (in closed position)
• Can be fitted in a surface with a minimum thickness of 2mm and
  a maximum thickness of 18mm
• Mosquito screen is supplied

VETUS Heavy Duty Oval Aluminium Porthole
Specifications:

Type	External Dimensions	Cut-Out Dimensions	Cut-Out Radius	Type Mosquito Screen
PM111	244 x 146 mm	220 x 122 mm	61 mm	HOR11
PM121	294 x 172 mm	270 x 148 mm	74 mm	HOR12
PM131	344 x 198 mm	320 x 174 mm	87 mm	HOR13
PM141	362 x 146 mm	338 x 122 mm	61 mm	HOR14
PM151	390 x 220 mm	366 x 196 mm	98 mm	HOR15
PM161	399 x 199 mm	375 x 175 mm	87 mm	HOR16
