VETUS Grey Water Discharge System Complete 230 Volt 50 Hz

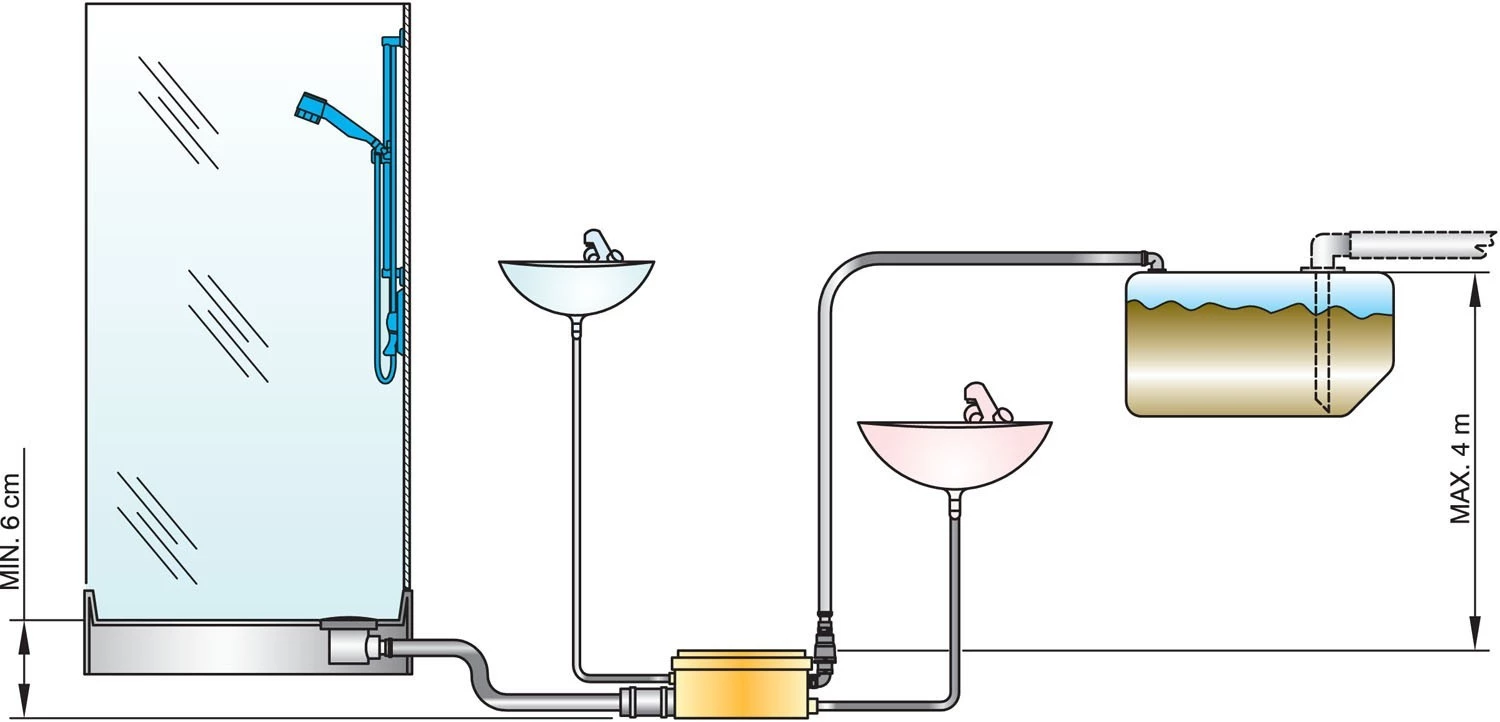

The waste water tank can be located up to 4 metres above the GWDS
unit or up to 20 metres away from it. Instead of pumping the waste
water into the holding tank, it can of course also be discharged

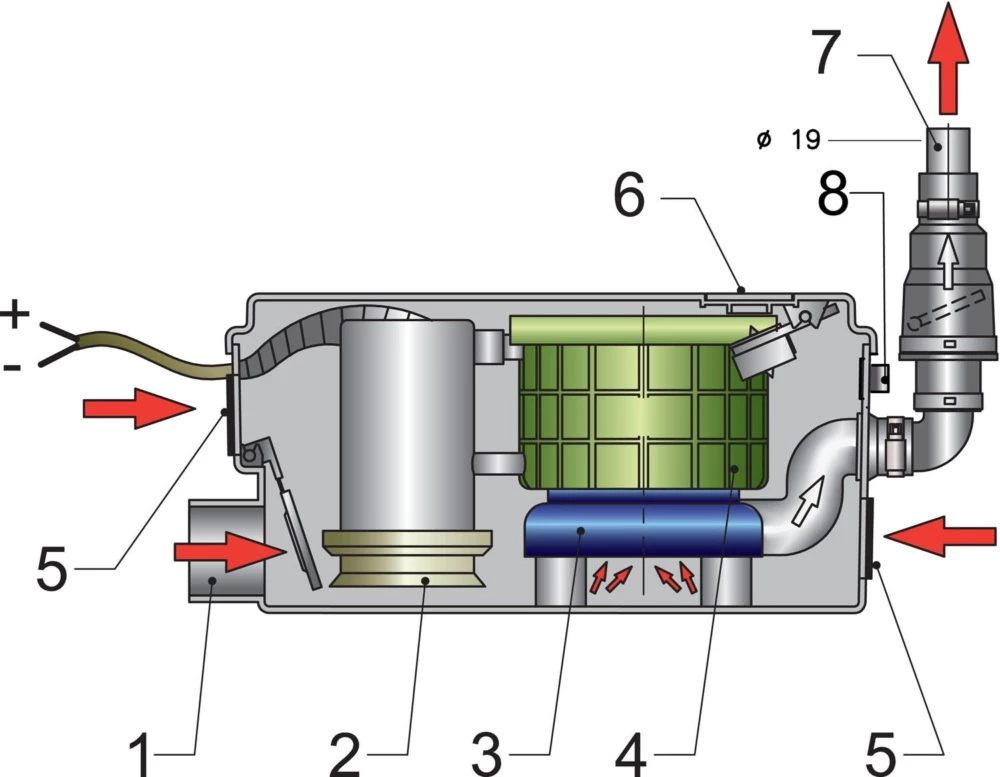

directly overboard. If the system becomes clogged, the housing
cover can be easily removed to clear the blockage.

TECHNICAL SPECIFICATIONS

• Voltage: 230Volt/50 Hz.
• Nominal power consumption: approx. 250 W (230V).
• Dimensions: 300 x 165 x 145 mm (l x w x h)
• Pump output: Approx. 44 litres/min.
• Outlet discharge to holding tank: 19 mm
• Inlet connections from shower or washbasin: 32 or 40 mm
• Weight: 3.5 kg
• Maximum permissible water temperature: 35 C.
