VETUS Grey Water Discharge System 24V

In many boats it is impossible to achieve a natural fall from
the shower tray or washbasin outlet into the waste water tank. In
these cases, the VETUS grey water discharge system (GWDS) is the

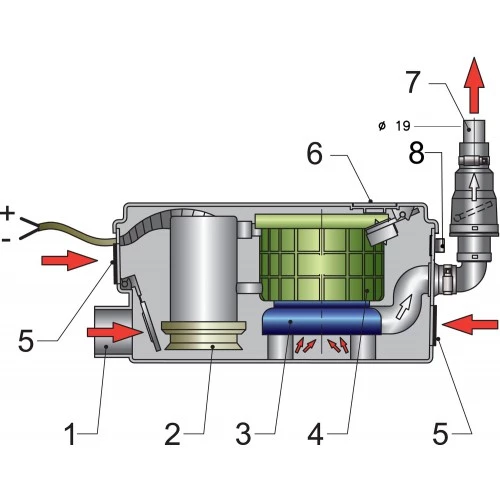

answer. The GWDS consists of a watertight housing with a discharge
pump and automatic float switch. The pump produces very low noise.
A non-return valve is fitted in the discharge line.

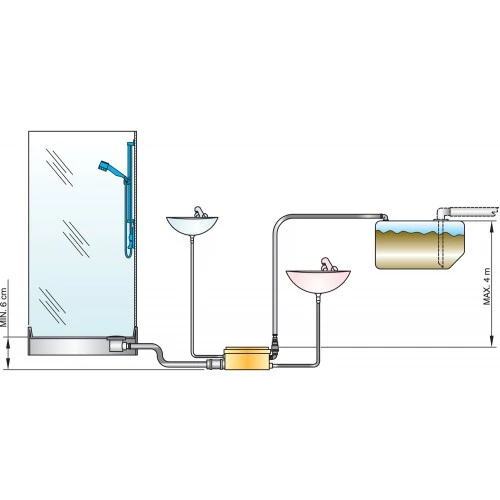

The bottom of the GWDS assembly must be at least 6 cm below the
shower tray or washbasin outlet. The waste water tank can be
located up to 4 metres above the GWDS unit or up to 20 metres away
from it.

Instead of pumping the waste water into the holding tank, it can
of course also be discharged directly overboard. If the system
becomes clogged, the housing cover can be easily removed to clear
the blockage.

Specifications:

Voltage (V)	24 V
Power consumption (W)	350
Dimensions (length x width x height) (mm)	300 x 165 x 145
Pump output (litres/minute)	44
Weight (kg)	No
Max. permissible water temperature ( degreesC)	35

Product Data Sheet
