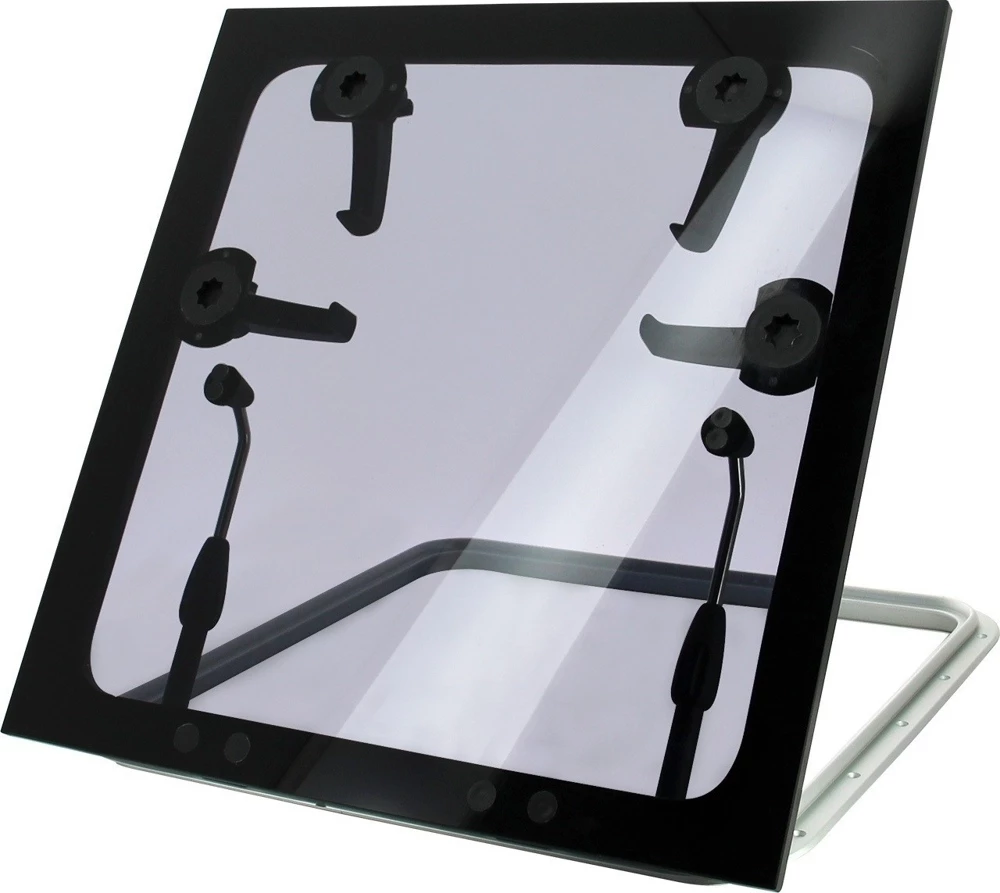

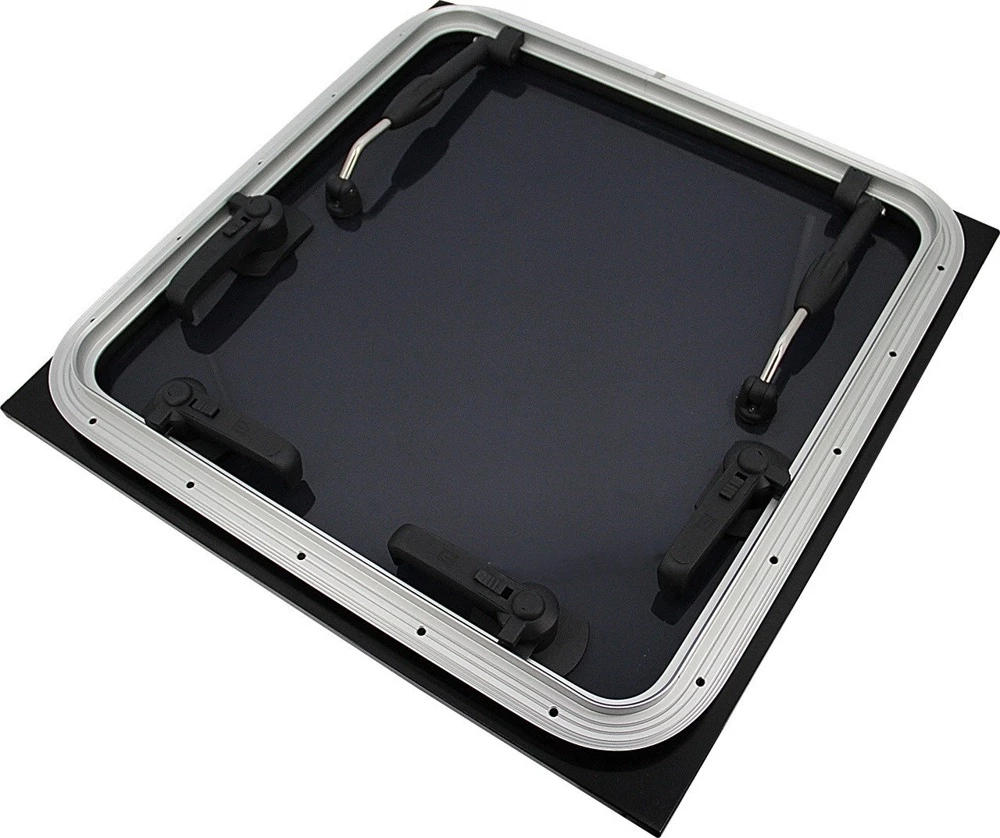

VETUS Fully Flush Escape Hatch 507x507mm

FGHF hatches are specifically designed for modern type boats. The meticulously engineered construction of these hatches ensures a flush fitting into the deck, resulting in a silky smooth transition between hatch and deck. The 12 mm thick dark smoke’ acrylic gives that VIP-privacy-glass’ vibe, while the polished and anodized aluminum frame completes the classy and time-less design on the inside. The FGHF series distinguishes itself from the FGH series by having flush mounted handles, stays and hinges in the acrylic so nothing protrudes. On that perfectly flat surface, no lines will get caught. The larger sizes hatches are equipped with a socket in the handle, so they can be opened from the outside with the help of a winch handle. The flush design reduces wind noise and is easy to clean. The VETUS clamps close the hatch tightly, making this hatch suitable for design category A, area II locations. The polished and anodized aluminium frame is both stylish as maintenance-free. FGHF hatches are engineered for cut-outs with a corner radius of 43 mm and are available from stock in the dimensions mentioned below. Unique features

12 mm thick dark smoke’ acrylic

Polished and anodised high grade aluminium frame

Ergonomical and precision engineered handles

Hatches are available in square shapes

Easy to clean and maintenance-free design

Suitable for category A, area II positions

This hatch can be opened from outside with a winch handle

Flush hatch square.
Specifications:

External dimensions A x B (mm)	580×580
Cut-out dimensions C x D (mm)	507×507
Number of hinges	2
Number of adjusters	2
Number of handles	4
Type mosquito screen	HCM5151

Product Data Sheet
