VETUS Flexible Waste Water Tank 55L

The VETUS TANKV55 flexible tank is suitable to store grey and black
waste water and is odour tight. It can be installed easily and
quickly. It assumes the shape of the space in which it is placed
and can be positioned in places that are normally difficult to
reach. There is no need for any additional installation parts.
Fitting the outlet nipple and connecting the hoses for inlet and
outlet are the only things to be done. When filled, the height is
approx. 30 cm.
VETUS not only weld the seams, but in addition we also weld an
extra strip. This makes the VETUS flexible tank resistant against
much higher pressures, especially if the contents are moving when
the boat is rolling or pitching.

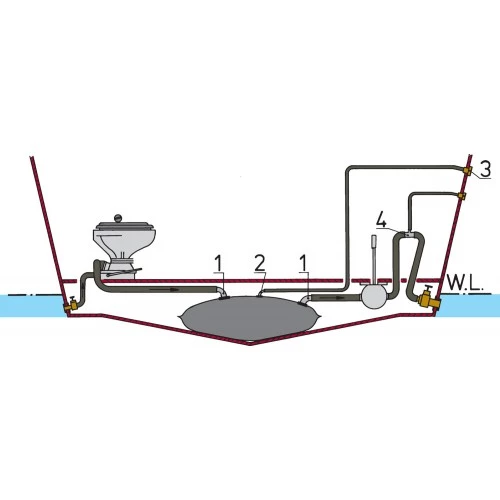

Construction – see drawing for details:

1. Two right angle nipples diameter 38 mm (supplied with the
   tank)
2. Right angle breather nipple diameter 16 mm, already
   fitted.
3. Breather nipple diameter 16 mm.
4. Breather bend for anti-siphoning device. When discharge of the
   tank through a deck plate is required, a diameter 38 mm tank
   connector is available as an option.

Specifications:

Capacity (litres)	55
Dimensions (height x width) (mm)	N/A
Material	Synthetic
Rigid/flexible tank	Flexible
Height filled (cm)	N/A
