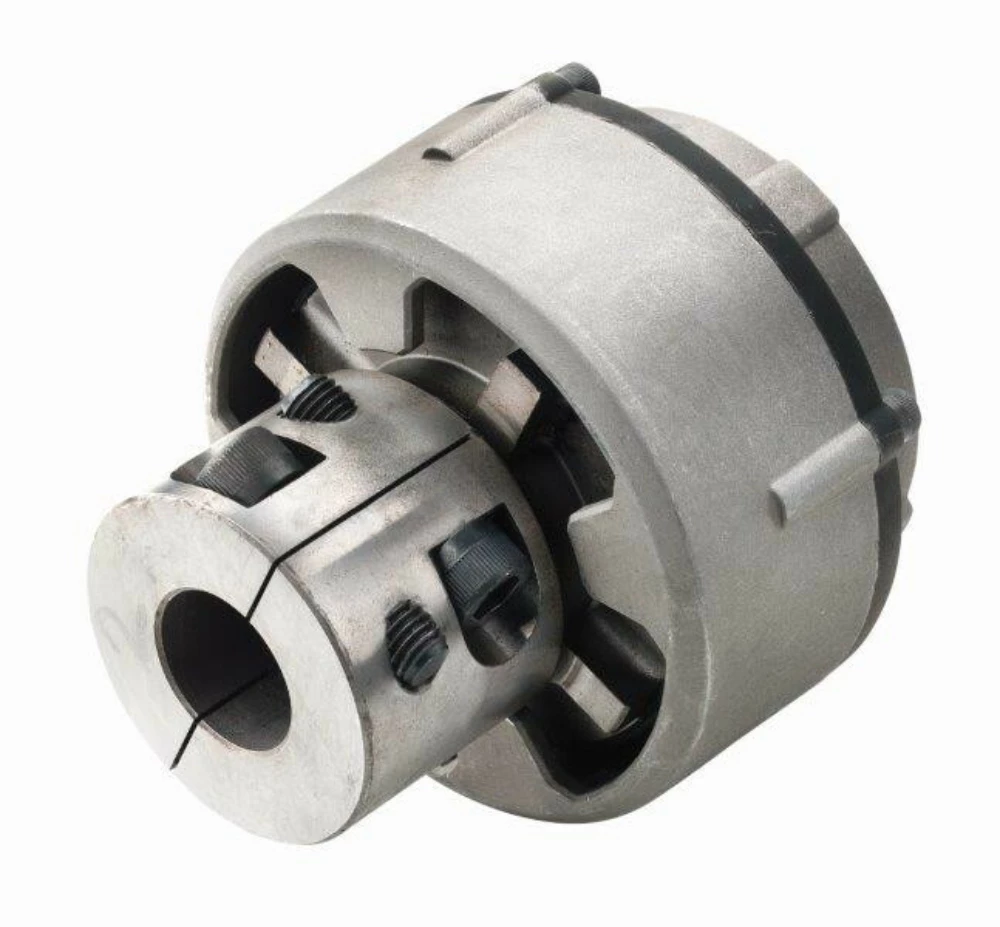

VETUS Flexible Coupling Type Combiflex 13 Shaft Diameter 30 Mm

The Combiflex coupling has been designed to ensure optimum damping of torsional vibrations, created by cycle irregularities especially at low engine revolutions. The Combiflex coupling is secured against shearing off, both axially and radially, thus ensuring safe transmission under all circumstances. The Combiflex coupling also provides excellent alignment of the propeller shaft. Aligning the engine and propeller shaft can be a rather time consuming affair, however the Combiflex will remain perfectly centred onto the gearbox flange, even if the shaft has a misalignment of 2 degrees maximum. The parallel clamping hub ensures easy installation and probably even more importantly, easy dismantling of the shaft assembly. Available for shafts of diameter 25 or 30 mm. Comes with a 4 flange to fit most common gearbox models. Optimum damping of torsional vibrations with the flexible coupling, combiflex type 13.
Specifications:
