VETUS Electric Wall Toilet With Control Panel 12V

Benefits of the VETUS electric marine toilet HATO212B:

• Wall mounting is ideal when floor space is limited
• Height can be set from 415 up to 600 mm.
• Comfortable seat.
• Easy to clean porcelain bowl.
• Very quiet macerator/discharge pump – 60 dB (A).
• Stainless steel macerator blade.
• Large capacity discharge pump.
• Very low water consumption.
• Supplied with a waterproof electronic operating panel.
• Easy to install and simple maintenance.
• Combined pump / macerator unit with a diameter of 96 mm.
• The pump motor power is 300 Watts and has a capacity of 36
  l/min at 3 metres head.
• Dual-flush system. The ECO button on the control panel will
  flush 1.2 litres of water. The NORMAL button will flush 2.2 litres.
  By pressing and holding the evacuation button, the toilets can be
  discharged without flushing. This is particularly useful to prevent
  overflowing on a heeled sailing boat.
• Maximum holding tank 3 metres above the toilet discharge
  connection. The maximum length of diameter parts 19 mm discharge
  hose can be up to 30 metres.
• The internal diameter of the outlet pipe is only 19 mm. This
  means that the toilet can be located in any convenient position
  aboard and can be connected simply to the waste water tank, using
  VETUS sanitation hose type SAHOSE.
• The discharge pumps are easily accessible for occasional
  cleaning if required.
• All toilets are provided with a water lock and non-return valve
  in the discharge line.

Specifications:

Control type	Control panel
Voltage (V)	12 V
Current consumption (A)	25 A
Soft close seat	No

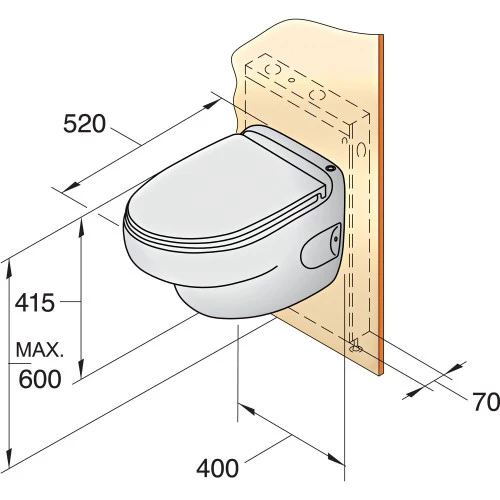

Toilet seat height (mm)	415 – 600
Toilet width (mm)	400
Toilet depth (mm)	520
Weight (kg)	32,5
Colour	No
Material	Porcelain
Water supply diameter (inch)	Female G3/4
Water supply	Connect to water pressure system. 1,7 – 6 bar
Water consumption (litre)	ECO 1,2 , NORMAL 2,2
Drain diameter (mm)	19
Max. delivery height (m)	3
Maximum drain length (m)	30
Pump output (litres/minute)	36
Panel dimensions (mm)	72 x 72
Panel build-in depth (mm)	21
Build-in panel protection	IP65
Control options	ECO flush, NORMAL flush
