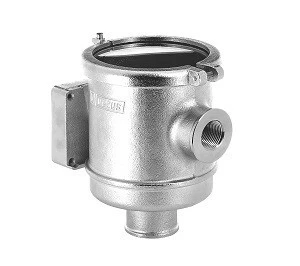

VETUS Cooling Water Strainer Bronze G1 .63cm Connections

VETUS nickel plated bronze cooling water strainers are an ideal solutions. The cover is removable with one screw. Tested up to 7 bar over pressure. This filter is available in 3 different sizes, ranging from G1, G1 1/4 and G1 1/2. Matching V-Quipment hose connections are available separately, see table below for item numbers. Dimensions of the CWS filter can be found in the picture below. The CWS-series will be available for sale first quarter of 2018. Specifications

Housing of nickel plated bronze

Filter element of stainless steel (AISI 316)

Mounted bracket of nickel plated bronze

Can be mounted near or below the waterline

V-Quipment hose connections available separately

Metal filter type CWS, for installations where the cooling water strainer must be mounted close to or below the waterline and for commercial applications.
Specifications:

Internal hose diameter (mm)	31,8
Recommended input (litres/minute)	143
Housing	Stainless steel
Filter element	Stainless steel
Cover	No
