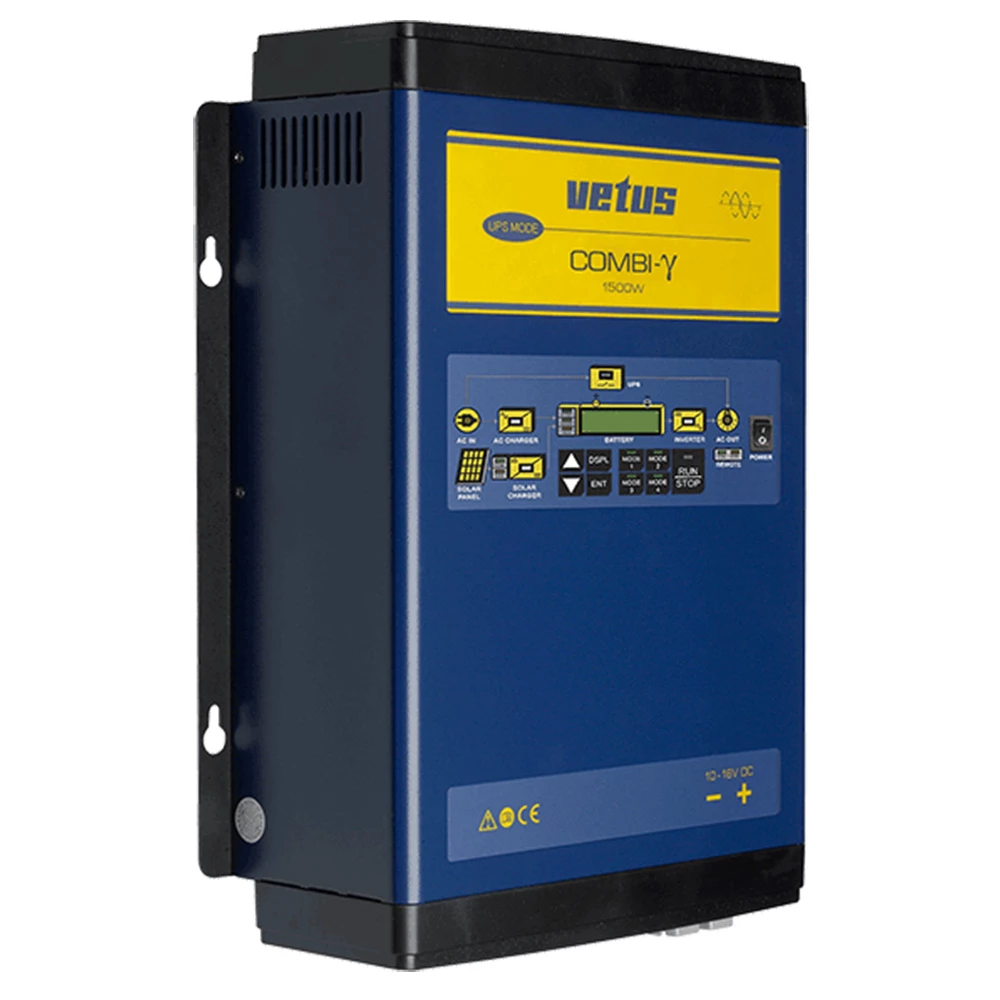

VETUS Combi-Gamma Battery Charger 70A/Inverter 1500W 12V

• As an inverter (from 12 or 24 Volt D.C. to 230 Volt A.C.)
• As a battery charger
• In combination with the VETUS solar charger

The description of the inverter function is identical to the VETUS
sine wave inverters.
The battery charger has a four-stage function: boost, absorption,
float and equalize. Two batteries or battery banks may be connected
to it.

In combination with a VETUS solar charger, the Combi-? unit can
exchange data and control the current supply, as well as the
charging characteristics. One 3 kW Combi-? unit will therefore
supply a total of 6kW (3kW via the inverter function and a further
3 kW from the shore supply or the generator).

• UPS (Uninterrupted Power Supply) If the power
  supply from the shore supply or generator fails, the Combi-?
  inverter function will switch in automatically.
• Parallel connection To achieve the maximum
  required power levels, up to 5 Combi-? units can be connected in
  parallel.
• Three-phase functionality A three-phase supply
  system may also be created with 3 Combi-? units. Using 3 kW
  Combi-?s in parallel and three-phase, a total output of 45 kW can
  be achieved.

  In addition to its major functions, the Combi-? has many more
  features:

  • Power Protector With the incorporated Power
    Protector, the maximum input current from the shore supply or the
    generator set can be selected. This ensures that the circuit
    breaker on the shore supply or generator will not trip.
  • Power Manager The Power Manager function
    controls and regulates the entire power supply. If you need more
    power, the Power Manager will automatically switch in the inverter,
    or start the generator, in order to supply the required power.
    REMOTE CONTROL PANEL FOR COMBI-? A remote control
    panel may be connected to the Combi-? unit.

    This panel displays the following information:

    • AC input and output voltage and current
    • Battery voltage, current and power consumption
    • Charging voltage and charging current levels of Combi-? and
      solar charger
    • UPS status
    • Multifunctional relay status
    • Alarms
      IT ALSO CONTROLS:
      • Inverter, battery charger, solar charger ON/OFF
      • Switching levels
      • Charge voltage and current
      • Relays
      • Parallel 3-phase configuration
