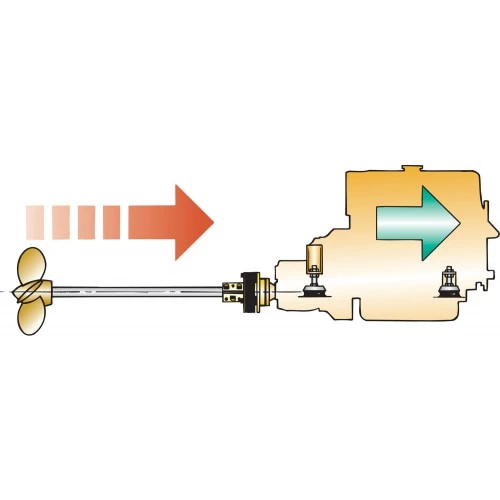

The BULFL3250 ensures optimum damping of vibrations. Excellent
alignment of the propeller shaft due to a special centering ring,
with ease of installation.
Specifications:
| Type Bullflex | 32 |
|---|---|
| DIN 6270B = pleasure craft kW (HP)/100 shaft RPM | 23.0 (31.3) |
| DIN 6270A = commercial craft kW (HP)/100 shaft RPM | 18.6 (25.3) |
| Max. torque Nm DIN 6270B | 2200 |
| Max. torque Nm DIN 6270A | 1780 |
| Max. RPM at zero misalignment | 3600 |
| Max. RPM at 2 degrees misalignment | 1800 |

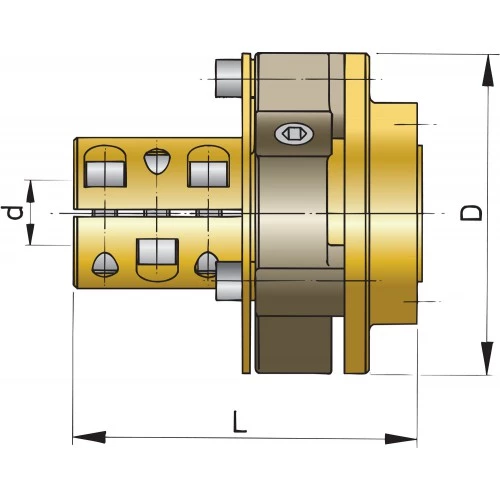

| D (mm) | 260 |
| L (mm) | 263 |
| Shaft diameter d (mm) | 50 |
