VETUS Bulkhead Mounted Horizontal Waste Water Tank 25L

VETUS bulkhead mounting tank for fitting in confined spaces – or
where an underfloor situation is impractical. The tank has a
capacity of 25 litres and is made of seamless, odour impermeable
polythene. The contents level can be seen from outside. Suitable
for both black and grey water. It comes complete with the following
components installed:

• Suction pipe with diameter 38 mm angled hose connector, for
  connection to deck plate
• Angled hose connector, diameter 38 mm, for discharge
• Inspection cover
• Angled hose connector, diameter 19 mm, for tank ventilation
  (breather)

Angled inlet connectors can be ordered separately. One hole has
already been provided, to connect the inlet fitting. The tank is
suitable for mounting under the side decks, above the waterline.
When permitted, the contents of the tank can be gravity discharged
at sea, without the assistance of a pump. Simply opening the sea
cock will empty the tank. Provided with ISO 8099
identification.

Specifications:

Capacity (litres)	25

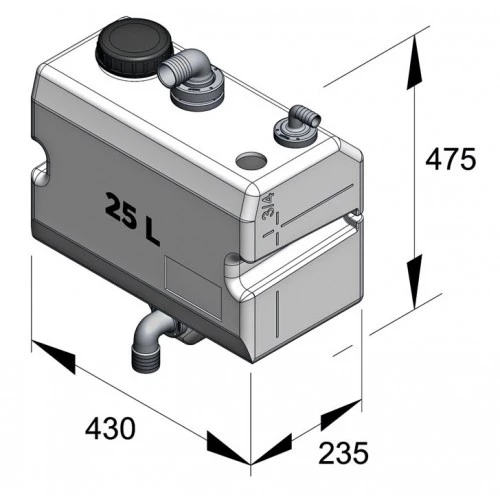

Dimensions (length x width x height) (mm)	475 x 430 x 235
Weight (kg)	No
Material	Synthetic
Rigid/flexible tank	Rigid

Product Data Sheet
