VETUS Bow Thruster 35kgf 12v

Advantages of VETUS bow thrusters

• A single propeller creates less flow disturbance in the
  tunnel
• The VETUS unique propeller blade design minimises cavitation
  noise
• Spiral gears minimise transmission noise
• The use of a flexible coupling between tail piece and motor
  eliminates vibration
• All VETUS systems use a streamlined tail piece for optimum
  flow
• A strong synthetic propeller eliminates corrosion and reduces
  weight
• Systems are easy to install, supplied with clear installation
  and operation instructions
• VETUS systems use a new line of high quality aluminium control
  panels which are interchangeable with older panels
• All VETUS manoeuvring systems meet the EMC requirements

Specifications:

Voltage (V)	12 V DC
Ignition protection	No
Thrust (N / kgf)	350 / 35
Power (kW)	1,5
Motor, reversible D.C.	Yes
Internal tunnel diameter (mm)	150
Weight (kg)	12
Current consumption (A)	205
Continuous operating time (min)	4
Max. operating time (minutes)	4
Main fuse ‘slow blow’ (A)	160
Batteries 12 V, min./max. Ah	1×55 / 1×105
Battery cables, length pos./neg. cables (m/mm)	0-11/35
Battery main switch: model BATSW / type BPMAIN	250/12

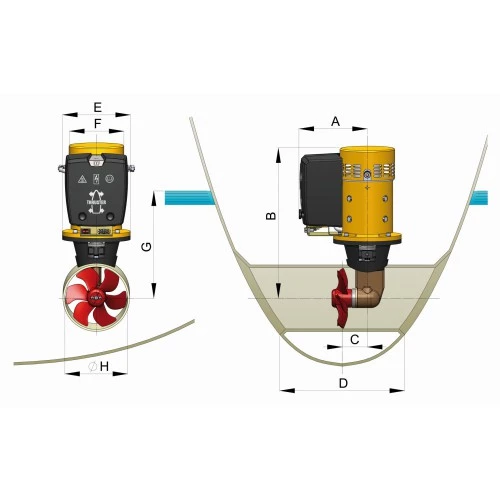

Size A in mm, see drawing	138
Size B in mm, see drawing	314
Size C in mm, see drawing	79
Size D min./max. in mm, see drawing	300/600
Size E in mm, see drawing	149
Size F, diameter in mm, see drawing	112
Size G min. in mm, see drawing	150
Size H, diameter in mm, see drawing	150
