VETUS Bow Thruster 25kgf 12v

Advantages of VETUS bow thrusters

• A single propeller creates less flow disturbance in the
  tunnel
• The VETUS unique propeller blade design minimises cavitation
  noise
• Spiral gears minimise transmission noise
• The use of a flexible coupling between tail piece and motor
  eliminates vibration
• All VETUS systems use a streamlined tail piece for optimum
  flow
• A strong synthetic propeller eliminates corrosion and reduces
  weight
• Systems are easy to install, supplied with clear installation
  and operation instructions
• VETUS systems use a new line of high quality aluminium control
  panels which are interchangeable with older panels
• All VETUS manoeuvring systems meet the EMC requirements

Specifications:

Voltage (V)	12 V DC
Ignition protection	No
Power (hp)	2
Motor, reversible D.C.	Yes
Internal tunnel diameter (inches)	4 21/64
Weight (lbs)	22
Current consumption (A)	200
Continuous operating time (min)	4
Max. operating time (minutes)	4
Main fuse ‘slow blow’ (A)	125
Batteries 12 V, min./max. Ah	1×55 / 1×70
Battery cables, length pos./neg. cables (ft/AWG)	26/1
Battery main switch: model BATSW / type BPMAIN	250/12

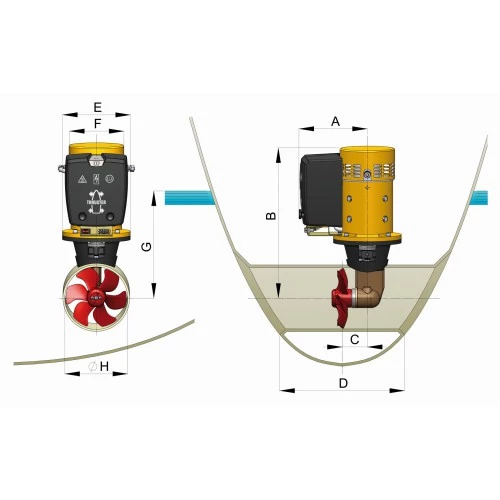

Size A in inches, see drawing	5 7/16
Size B in inches, see drawing	11 11/16
Size C in inches, see drawing	2 7/8
Size D min./max. in inches, see drawing	8 21/32 / 17 21/64
Size E in inches, see drawing	5 55/64
Size F, diameter in inches, see drawing	4 13/32
Size G min. in inches, see drawing	4 21/64
Size H, diameter in inches, see drawing	4 21/64

Product Data Sheet
