VETUS Aluminiumm Engine Panel Type MPA34 12V 4 Black Instruments 0-4000 Rpm

Thanks to style and quality materials, these new engine panels are
an upgrade for your dashboard. The panels are made from marine
grade anodized aluminium, which gives them and the individual
gauges a classy look.

The subtle curves and contours bring elegance and modernity to
the helm station.

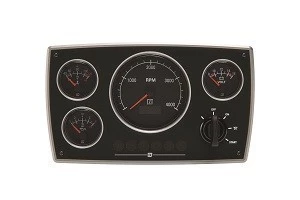

The MPA34 panel includes an ignition key, tachometer, hour meter,
voltmeter, oil pressure, engine temperature and warning signals
(LED and acoustic).

Two additional gauges are an option with the extension panel
MPA1XB (extra gauges should be ordered separately).

All panels can be ordered with black or white gauges. The panel is
finished with a black weatherproof coating.
Custom colours are available for order quantities of one hundred
panels or more.

All instruments are supplied with two round bezels as standard:
one black plastic and the other chrome finish plastic.

Specifications

• Stylish design
• Made of marine grade anodized aluminium
• MPA34BS2 includes (black) gauges, ignition key and 6 (LED and
  acoustic) warning signals
• Two extra gauges can be installed using the MPA1XB extension
  panel
• Easy installation. Supplied with gaskets and mounting
  screws
• IP64 Waterproof
• 12 Volt, (0-4000rpm)

The IP ratings quoted assume that the product is installed
correctly and are from the front face only.
Specifications:

Dial colour	Black
Watertight	Yes
Build-in depth (mm)	120
Dimensions (height x width) (mm)	267 x 157
