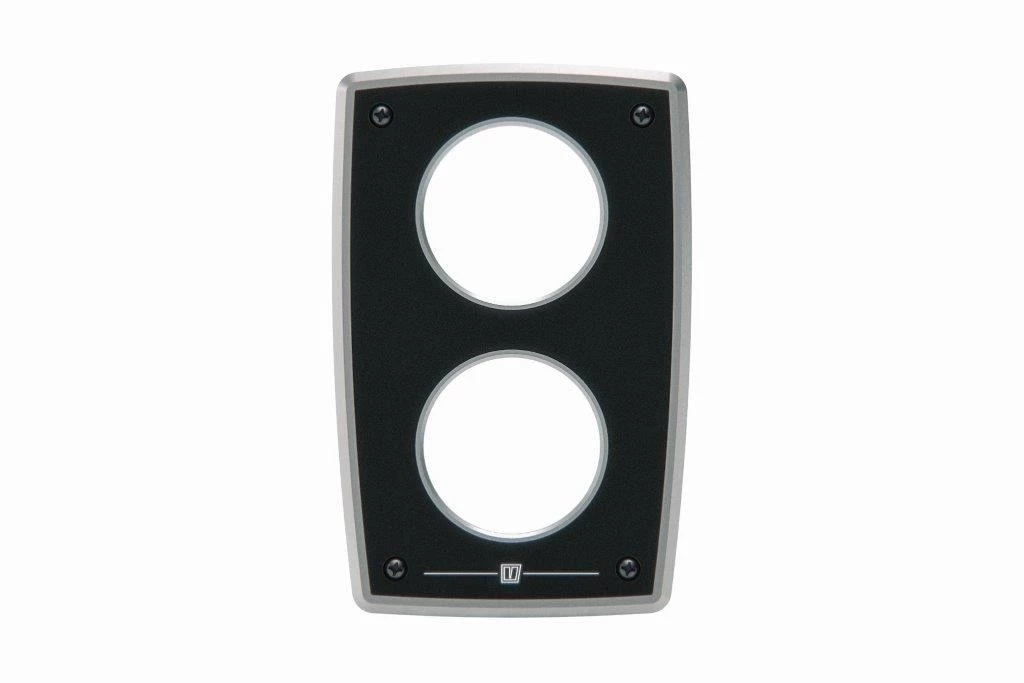

VETUS Aluminiumm Engine Panel Type MPa22, 12V 2 Black Instruments 0-5000 Rpm

Thanks to style and quality materials, these new engine panels are
an upgrade for your dashboard. The panels are made from marine
grade anodized aluminium, which gives them and the individual
gauges a classy look.

The subtle curves and contours bring elegance and modernity to
the helm station.

The MPA34 panel includes an ignition key, tachometer(0-5000RPM),
hour meter, voltmeter and warning signals (LED and acoustic). Also
includes oil pressure and engine temperature gauges.
All instruments are supplied with two round bezels as standard: one
black plastic and the other chrome finish plastic.
White instruments with chrome finish plastic and white plastic.
All panels can be ordered with black or white gauges. The panel is
finished with a black weatherproof coating. Custom colours are
available for order quantities of one hundred panels or more.

Installed panels are IP64 splash proof and the electrical
connections are backwards compatible with those of older VETUS
panels.

Specifications

• Stylish design
• Made of marine grade anodized aluminium
• MPA2 and MPA3 include gauges, ignition key and LED warning
  signals. Two extra gauges can be installed using the MPA1XB
  extension panel
• Easy installation. Supplied with gaskets and mounting
• IP64 splash proof
• Available with black or white gauges

• Available for 12 and 24 Volt systems

The IP ratings quoted assume that the product is installed
correctly and are from the front face only.
Specifications:

Dial colour	Black
Watertight	Yes
Build-in depth (mm)	120
Dimensions (height x width) (mm)	267 x 157
