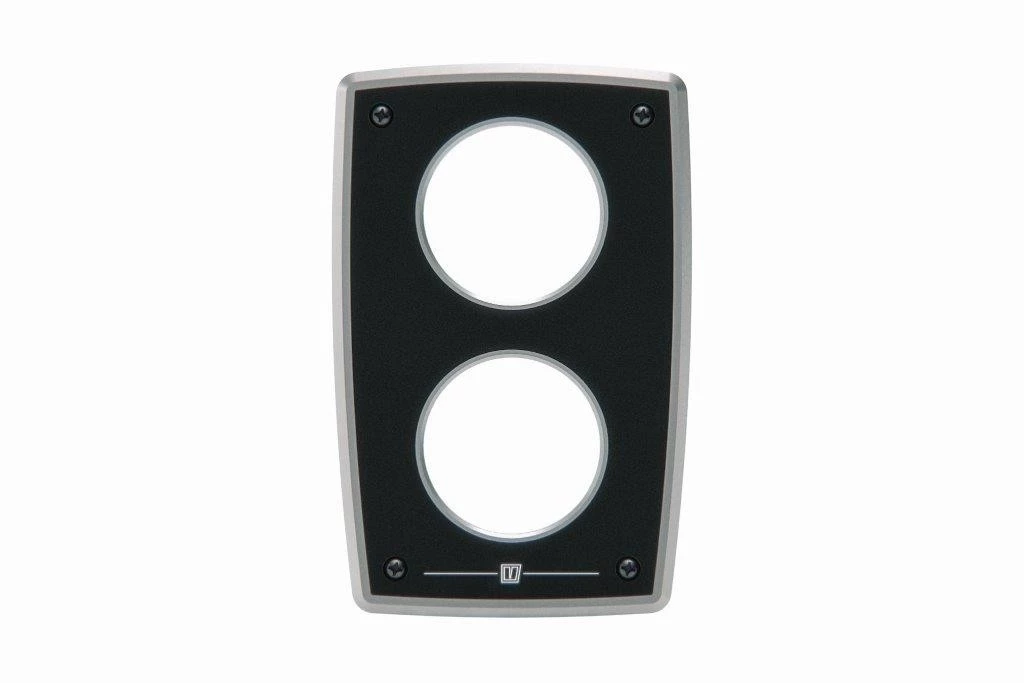

VETUS Aluminiumm Engine Panel Type MPa22, 12V 2 Black Instruments 0-4000 Rpm

Thanks to style and quality materials, these new engine panels are
an upgrade for your dashboard. The panels are made from marine
grade anodized aluminium, which gives them and the individual
gauges a classy look.

The subtle curves and contours bring elegance and modernity to
the helm station.

The MPA22 panel includes an ignition key, tachometer (0-4000RPM),
hour meter, voltmeter and warning signals (LED and acoustic).

Two additional gauges are an option with the extension panel
MPA1XB (extra gauges should be ordered separately).

All panels can be ordered with black or white gauges. The panel is
finished with a black weatherproof coating.
Custom colours are available for order quantities of one hundred
panels or more.

Installed panels are IP64 splash proof and the electrical
connections are backwards compatible with those of older VETUS
panels.

All instruments are supplied with two round bezels as standard:
one black plastic and the other chrome finish plastic. White one
black plastic and the other chrome finish plastic.

• Specifications
• Stylish design
• MPA2 and MPA3 include gauges, ignition key and LED warning
  signals. Two extra gauges can be installed using the MPA1XB
  extension panel
• Easy installation. Supplied with gaskets and mounting
• IP64 splash proof
• Available with black or white gauges
• Available for 12 and 24 Volt
  systems

The IP ratings quoted assume that the product is installed
correctly and are from the front face only.
Specifications:

Dial colour	Black
Watertight	Yes
Build-in depth (mm)	120
Dimensions (height x width) (mm)	218 x 157
