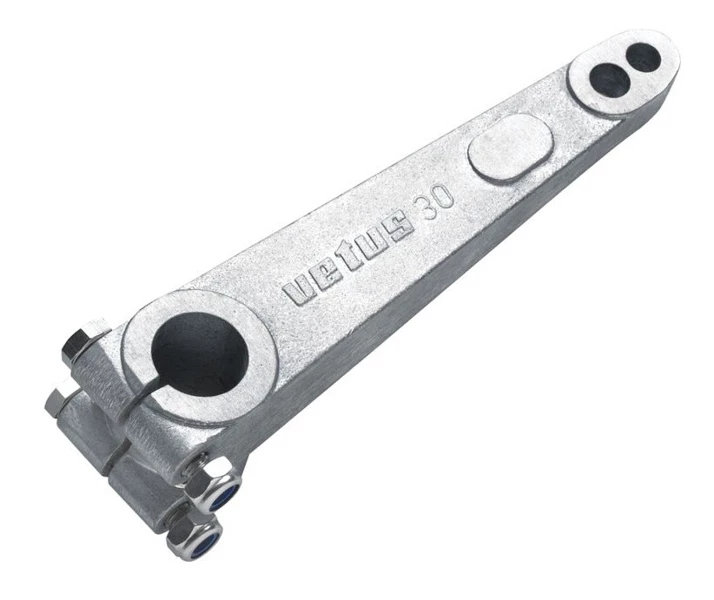

VETUS Aluminium Rudder Arm For 30mm Rudder Shaft

Rudder arm for rudder stocks of Ø30mm

This VETUS Aluminium Rudder Arm is specifically
designed for rudder stocks of Ø30mm. Connection to the rudder stock
is made by two clamp bolts. Features two locking grub screws onto
the and four pre-drilled attachment points for the steering
cylinder. This makes them suitable for VETUS hydraulic cylinders
MTC30, MTC52 and MTC72.

VETUS Aluminium Rudder Arm Specifications:

• Model number: HELM30
• For 30mm dia. rudder stocks
• Connected by 2 clamp bolts
• 2 locking grub screws onto the shaft
• 4 attachment points for the steering clylinder
• Suitable for VETUS hydraulic cylinders type MTC30/52 and
  72
• Rudder shaft diameter: 30mm
• Height: 56mm
