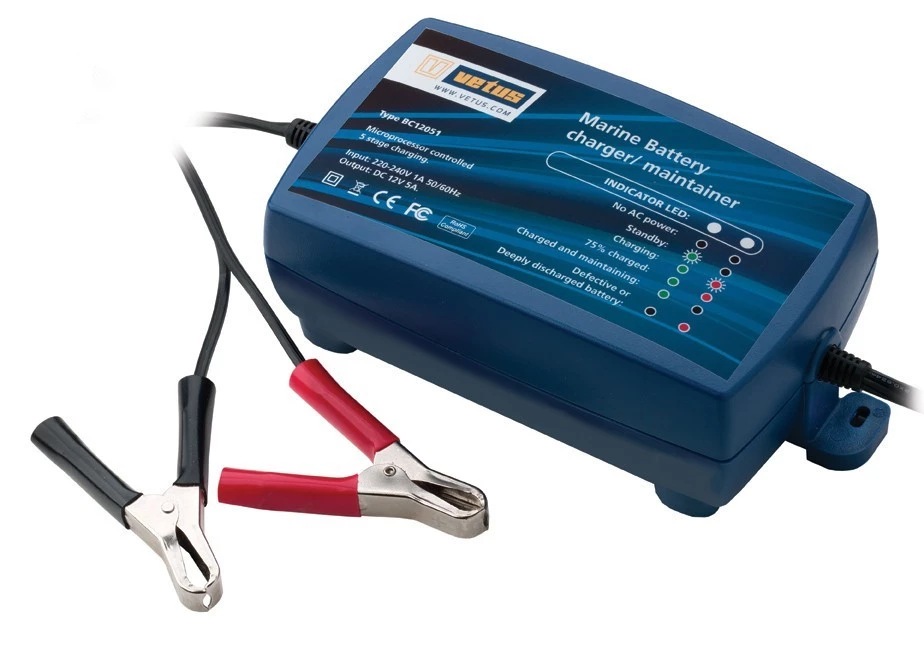

VETUS 5-Stage Battery Charger/ Maintainer Output: 12V 5 A

Extend the life of your batteries with this ‘smart’ 5-stage
charger! VETUS introduces a new 12 Volt, 5 Ampere battery
charger. This new microprocessor controlled ‘switch mode’ charger
will charge a battery in five separate stages. Thanks to the switch
mode technology batteries are charged 1.5 times faster compared
with a conventional battery charger. It is also capable of
‘refreshing’ and maintaining your battery. The BC12051 charger will
combat sulphation in the connected battery, thus lengthening its
life span. Sulphate builds up on and between the plates when a
battery is left unused, in either a discharged or partially charged
state. Sulphate growth on the battery plates will then diminish the
performance of the battery until it is totally unusable and has to
be replaced. In the first charge stage, this battery charger sends
a pulse charge current into the battery to break down the sulphate
build up and lengthen the battery’s life span. To prevent capacity
loss, the charger’s last stage is a ‘float’ stage. This will
maintain the battery in a fully charged state thereby preventing
sulphate build up. Supports all types of lead-acid batteries: SLI
(Start, Lighting, Ignition), MF (Maintenance Free), VRLA
(ValveRegulated Lead Acid), AGM (Absorbed Glass Mat), GEL (Gel
Electrolyte).

• 1st step: Combat sulphatation (pulse charge)
• 2nd step: Boost or bulk charge (max. current up to 75% of
  battery capacity)
• 3rd step: Equalize and analyze (pulsating low current until
  100% capacity)
• 4th step: ‘Top off’ (Maintain boost voltage with low current to
  prevent over charging).
• 5th step: Maintenance and float charge (Maintain full capacity
  at a lower float voltage).
• The BC12051 in
  brief:
• Five stage charging
• 1.5 times faster charging compared with conventional
  chargers
• Refreshes batteries with the de-sulphation stage
• Maintains batteries with the float stage
• IP65 (dust, splash and rain proof)
• Spark free connection
• Reverse polarity protection
• Overshare protection
• Battery clamp connection cable and M8 terminal connection cable
  supplied as standard
• Specifications:

Max. charging voltage	14.8 V
Max. charging current	5 A
Max. recommended battery capacity	100 Ah
Input voltage (V)	220 – 240 VAC
Input frequency (Hz)	50/60 Hz
Power (W)	230 W
AC supply cable length (m)	1.83 m
DC output cable length (m)	1.83 m
Ambient temperature ( degreesC)	-20 degrees C to 50 degrees C
Protection level	IP 65 (dust, splash and rain proof)
Dimensions (length x width x height) (mm)	54 x 160 x 96 mm
Weight (kg)	0.85 kg
