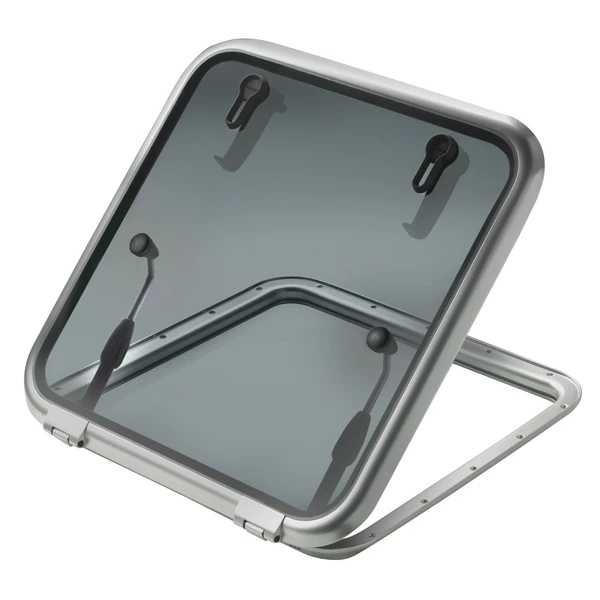

VETUS 4242 Altus Deck Hatch

The Altus escape and ventilation hatch features a sturdy
aluminium profile which is only 21 mm high.

This hatch is CE classified: AII, which means to say that its
designed for ocean use and can be fitted on deck.

They allow the lid to be held open at almost any angle up to 90
degrees . Like other VETUS hatches, the Altus range can be opened
from inside or outside the boat.

They can also be left locked; either completely watertight or in
a ventilation position.

The frame profile is satin sheen anodised. It recesses 22 mm
below the deck surface. The acrylic has a thickness of 10 mm and
the color is dark smoke.

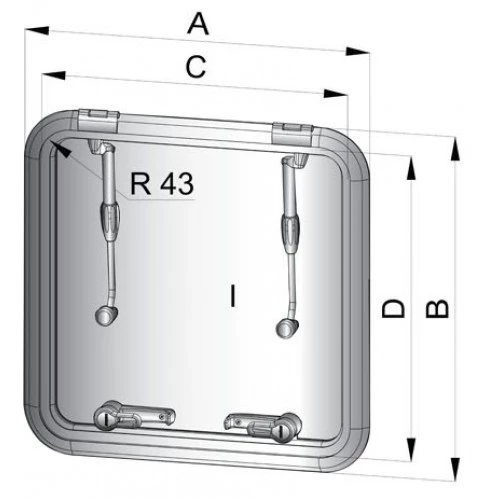

External dimensions A x B (mm) 495 x 495

Cut-out dimensions C x D (mm) 421 x421

Mosquito screen / counter flange: HCM4242 (option)

Specifications:

External dimensions A x B (mm)	495 x 495
Cut-out dimensions C x D (mm)	421 x 421
