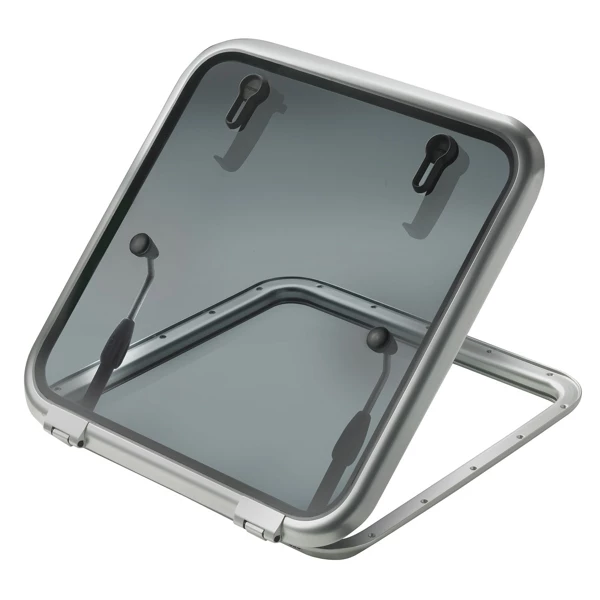

VETUS 2626 Altus Ventilation Hatch

The Altus escape and ventilation hatch features a sturdy
aluminium profile which is only 21 mm high. This hatch is CE
classified: AII, which means to say that its designed for ocean use
and can be fitted on deck.

The ALT2626SL is provided with carefully designed hatch
adjusters, which are both stylish and easy to operate. They allow
the lid to be held open at almost any angle up to 90 degrees . Like
other VETUS hatches, the Altus range can be opened from inside or
outside the boat. They can also be left locked; either completely
watertight or in a ventilation position.

The frame profile is satin sheen anodised. It recesses 22 mm
below the deck surface. The acrylic has a thickness of 10 mm and
the color is dark smoke.

Mosquito screen / counter flange: HCM2626 (not included)

Specifications:

External dimensions A x B (mm)	334 x 334
Cut-out dimensions C x D (mm)	260 x 260
